NSYCU300H

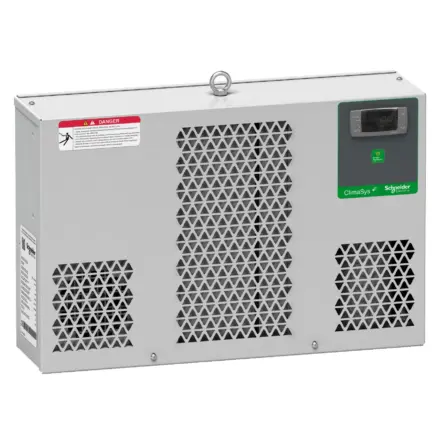

NSYCU300H Schneider Electric - ClimaSys std cooling unit on enclosure, in horizontal position - 300W at 230 V

NSYCU300H Schneider Electric - ClimaSys indoor cooling unit made from grey steel (RAL 7035),Mounted on enclosure, in horizontal position or on side of enclosure,The external filter is not included as standard but is recommended to use when using the cooling unit in harsh environments,External dimensions (Height x Width x Depth) is 340 x 525 x 135mm,Cooling power is 300W 50/60 Hz L35-L35 and 150W 50/60 Hz L35-L50,The air flow of internal circuit is 280 m3/h at 50/60 Hz and external circuit is 280 m3/h at 50/60 Hz,The pressure is 25 bar,The unit has an input voltage of 230 V 50/60 Hz and inrush current of 4,2A with energy efficiency ratio of 1:1,Power consumption is 270W at 50/60 Hz, L35-L35 and 310W at 50/60 Hz, L35-L50,Thermal protection recommended (fuse) is T 4A,1 phase network,The unit has electronic controller,Protection degree IP internal/external IP55/IP34 according to IEC 60529,Ambient air temperature for operation 20-46 °C inside the enclosure, 55-55 °C maximum, 20-55 °C at 50 Hz outside the enclosure and 20-50 °C at 60 Hz outside the enclosure,Noise level is 61 dB conforming to EN/ISO 3746,Net weight is 17kg,The product conforms EN 60335-2-40, EN 378, EN/ISO 12100, EN 60204-1 and EN 60335-1 standards as well as CE declaration,Cooling gas type is R134a (0,13 kg),This product is qualified as a green premium, with minimal use of hazardous substances
