NSYCUHD1K

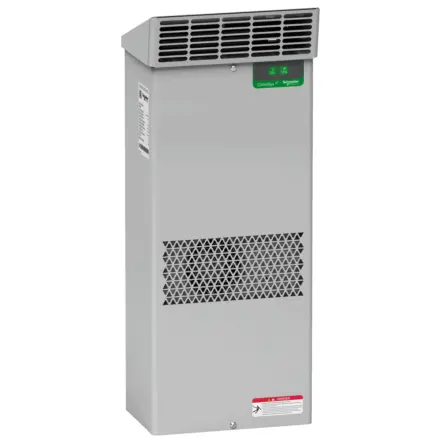

NSYCUHD1K Schneider Electric - ClimaSys outdoor cooling unit side of enclosure - 1000W at 230 V

NSYCUHD1K Schneider Electric - ClimaSys outdoor cooling unit made from grey steel (RAL 7035),Mounted by screws on side of enclosure,The external filter is not included as standard but is recommended to use when using the cooling unit in harsh environments,External dimensions (Height x Width x Depth) is 783 x 348 x 215mm,Cooling power is 1000W 50/60 Hz L35-L35 and 790W 50/60 Hz L35-L50,The air flow of internal circuit is 330 m3/h at 50/60 Hz and external circuit is 570 m3/h at 50/60 Hz,The pressure is 25 bar,The unit has an input voltage of 230 V 50/60 Hz and inrush current of 10,5A with energy efficiency ratio of 1,8,Power consumption is 570W at 50/60 Hz, L35-L35 and 650W at 50/60 Hz, L35-L50,Thermal protection recommended (fuse) is T 6A,1 phase network,The unit has mechanical controller,Protection degree IP internal/external IP55/IP34 according to IEC 60529,Ambient air temperature for operation 20-46 °C inside the enclosure, 55-55 °C maximum and -20-55 °C outside the enclosure,Noise level is 65 dB conforming to EN/ISO 3746,Net weight is 28kg,The product conforms EN 60204-1, EN 60335-2-40, EN 60335-1, EN/ISO 12100 and EN 378 standards as well as CE declaration,Cooling gas type is R134a (0,23 kg),This product is qualified as a green premium, with minimal use of hazardous substances
