Schneider Electric

NSYCVA114M

NSYCVA114M Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYCVA114M Schneider Electric

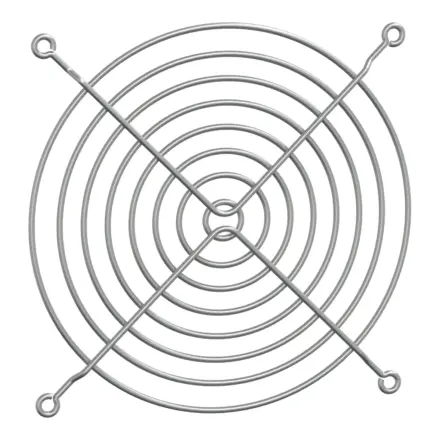

NSYCVA114M Schneider Electric - Metal rear Outlet protector d114mm

Extended Description for NSYCVA114M Schneider Electric

NSYCVA114M Schneider Electric - Rear protective grille 120 x 120mm made from steel for ClimaSys CV fan,The kit is made of 1 protective grille,The external width is 120mm and fixing centers width is 104,8mm,120mm external:,The 104,8mm fixing centers: Cut-out diameter is 114mm,Ingress protection rating (according to IEC 60529) is IP20,Fixing by screws on rear of axial motor,This product is qualified as a green premium, with minimal use of hazardous substances

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1.89 Exc. VAT
£2.27 Inc. VAT

Main

Range ClimaSys
Product ClimaSys CV
Range compatibility ClimaSys ClimaSys CV fan
product or component type Rear protective grille
accessory / separate part category Thermal management accessory
Accessory / separate part destination For enclosure fan motor
Mounting location Rear of axial motor
Fixing mode By screws
Device composition 1 protective grille

Complementary

Material Steel
Diameter 114 mm
Height External: 120 mm,Fixing centers: 104.8 mm
Width External: 120 mm,Fixing centers: 104.8 mm

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 0.500 cm
Package 1 Width 15.500 cm
Package 1 Length 15.500 cm
Package 1 Weight 32.300 g
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 3.500 cm
Package 2 Width 15.500 cm
Package 2 Length 15.500 cm
Package 2 Weight 376.000 g
Unit Type of Package 3 S01
Number of Units in Package 3 60
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.456 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

CAD

Environmental disclosure
