Schneider Electric

NSYMDVR12

NSYMDVR12 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYMDVR12 Schneider Electric

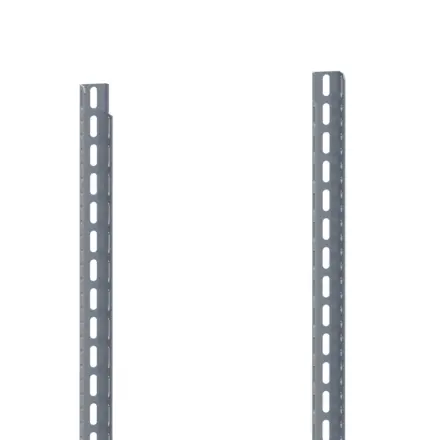

NSYMDVR12 Schneider Electric - Vertical steel rail, height 1200mm. Packaging unit: 2 pieces.

Extended Description for NSYMDVR12 Schneider Electric

NSYMDVR12 Schneider Electric - Set of 2 2,5mm thick steel rails for PanelSeT S3D, PanelSeT CRN, PanelSeT S3X and Thalassa PLM enclosures,The width is 25mm,The nominal height is 1200mm and real height is 1152,4mm,The depth is 15mm,The uprights are used for mounting chassis and fixing wiring accessories,Fixed by screws of type M8 on backstuds of enclosure location,The product is made of 2 x 1 upright,Net weight is 1,34kg,This product is qualified as a green premium, with minimal use of hazardous substances

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£18.71 Exc. VAT
£22.45 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Mounting accessory
product or component type Rail
device application Multi-purpose
enclosure nominal dimensions -
mounting support Fixing nut
Range compatibility PanelSeT PanelSeT S3D,PanelSeT PanelSeT CRN,PanelSeT PanelSeT S3X,Thalassa Thalassa PLM
Device composition 1 upright
Quantity per set Set of 2
Material Steel

Complementary

Fixing mode Screwed - screw type M8 - on backstuds of enclosure location
Height Nominal: 1200 mm,Real: 1152.4 mm
Width 25 mm
Depth 15 mm
Thickness 2.5 mm
net weight 1.34 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 12.000 cm
Package 1 Length 116.000 cm
Package 1 Weight 1.220 kg
Unit Type of Package 2 CAR
Number of Units in Package 2 2
Package 2 Height 4.000 cm
Package 2 Width 12.000 cm
Package 2 Length 116.000 cm
Package 2 Weight 2.440 kg
Unit Type of Package 3 PAL
Number of Units in Package 3 40
Package 3 Height 29.000 cm
Package 3 Width 37.500 cm
Package 3 Length 120.000 cm
Package 3 Weight 48.800 kg

Logistical informations

Country of origin FR

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD

Environmental disclosure
