Schneider Electric

NSYMF1010

NSYMF1010 Schneider Electric

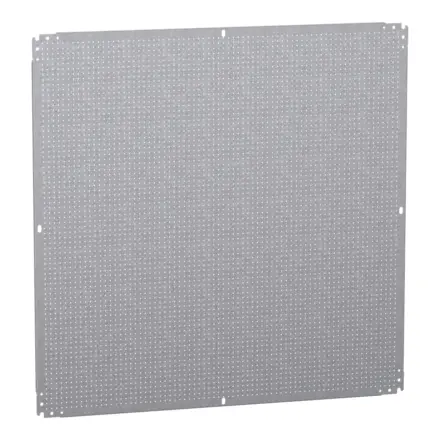

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYMF1010 Schneider Electric

NSYMF1010 Schneider Electric - Microperforated mounting plate H1000xW1000 w/holes diam 3,6mm on 12,5mm pitch

Extended Description for NSYMF1010 Schneider Electric

NSYMF1010 Schneider Electric - Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM.,For enclosures H is1000 x W is1000 mm.,With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access.,Step slide mounting location or direct fixing on backstuds (M8 screws). 150 Kg permissible load.,Galvanised steel.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£79.64 Exc. VAT
£95.57 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Mounting accessory
product or component type Mounting plate
device application Multi-purpose
Enclosure nominal dimensions - H: 1000 mm W: 1000 mm
Mounting location Direct fixing on backstuds,Step slide
Mounting plate description Microperforated
Range compatibility PanelSeT PanelSeT S3D,PanelSeT PanelSeT CRN,Thalassa Thalassa PLM
Quantity per set Set of 1
Material Galvanised steel

Complementary

Fixing mode Screwed on backstuds - screw type M8,By fixing element
Permanent permissible load 225.6 kg S3D, CRN, S3X enclosures,135.4 kg PLM enclosure
Maximum load 250 kg S3D, CRN, S3X enclosures,150 kg PLM enclosure
Height 950 mm
Width 950 mm
Surface and useful surface 90.3 dm²
Thickness 2.5 mm
net weight 17.826 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 95.000 cm
Package 1 Length 95.000 cm
Package 1 Weight 17.000 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 25
Package 2 Height 58.500 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 438.000 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD

Environmental disclosure
