Schneider Electric

NSYMF44

NSYMF44 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYMF44 Schneider Electric

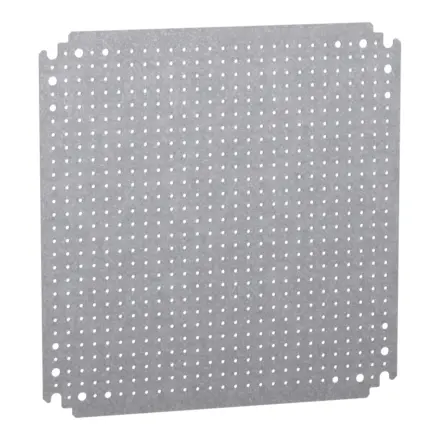

NSYMF44 Schneider Electric - Microperforated mounting plate H400xW400 w/holes diam 3,6mm on 12,5mm pitch

Extended Description for NSYMF44 Schneider Electric

NSYMF44 Schneider Electric - Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM.,For enclosures H is400 x W is400 mm.,With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access.,Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load.,Galvanised steel.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£13.98 Exc. VAT
£16.78 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Mounting accessory
product or component type Mounting plate
device application Multi-purpose
Enclosure nominal dimensions - H: 400 mm W: 400 mm
Mounting location Direct fixing on backstuds,Step slide
Mounting plate description Microperforated
Range compatibility PanelSeT PanelSeT S3D,PanelSeT PanelSeT CRN,Thalassa Thalassa PLM
Quantity per set Set of 1
Material Galvanised steel

Complementary

Fixing mode Screwed on backstuds - screw type M8,By fixing element
Permanent permissible load 60 kg
Height 365 mm
Width 350 mm
Depth 125 mm
Thickness 1.8 mm
net weight 1.9 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 0.300 cm
Package 1 Width 35.000 cm
Package 1 Length 37.000 cm
Package 1 Weight 1.870 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 120
Package 2 Height 45.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 237.000 kg
