Schneider Electric

NSYMF65

NSYMF65 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYMF65 Schneider Electric

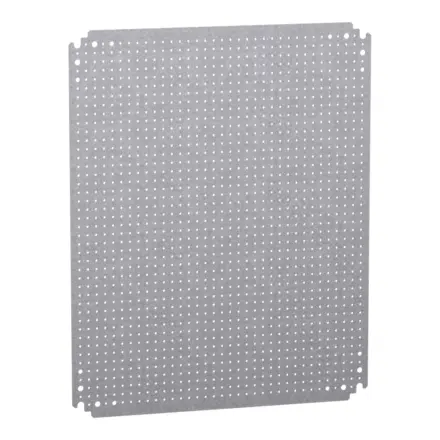

NSYMF65 Schneider Electric - Microperforated mounting plate H600xW500 w/holes diam 3,6mm on 12,5mm pitch

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£24.21 Exc. VAT
£29.05 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Mounting accessory
product or component type Mounting plate
device application Multi-purpose
Enclosure nominal dimensions - H: 600 mm W: 500 mm
Mounting location Direct fixing on backstuds,Step slide
Mounting plate description Microperforated
Range compatibility PanelSeT PanelSeT S3D,PanelSeT PanelSeT CRN,Thalassa Thalassa PLM
Quantity per set Set of 1
Material Galvanised steel

Complementary

Fixing mode Screwed on backstuds - screw type M8,By fixing element
Permanent permissible load 90 kg
Height 550 mm
Width 450 mm
Depth 125 mm
Thickness 1.8 mm
net weight 3.7 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 0.500 cm
Package 1 Width 56.500 cm
Package 1 Length 45.000 cm
Package 1 Weight 3.704 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 250
Package 2 Height 42.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 939.000 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD

Environmental disclosure
