Schneider Electric

NSYMF88

NSYMF88 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYMF88 Schneider Electric

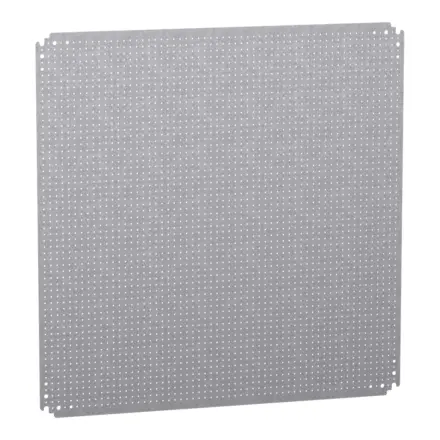

NSYMF88 Schneider Electric - Microperforated mounting plate H800xW800 w/holes diam 3,6mm on 12,5mm pitch

Extended Description for NSYMF88 Schneider Electric

NSYMF88 Schneider Electric - Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM.,For enclosures H is800 x W is800 mm.,With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access.,Step slide mounting location or direct fixing on backstuds (M8 screws). 150 Kg permissible load.,Galvanised steel.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£44.08 Exc. VAT
£52.89 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Mounting accessory
product or component type Mounting plate
device application Multi-purpose
Enclosure nominal dimensions - H: 800 mm W: 800 mm
Mounting location Direct fixing on backstuds,Step slide
Mounting plate description Microperforated
Range compatibility PanelSeT PanelSeT S3D,PanelSeT PanelSeT CRN,Thalassa Thalassa PLM
Quantity per set Set of 1
Material Galvanised steel

Complementary

Fixing mode Screwed on backstuds - screw type M8,By fixing element
Permanent permissible load 150 kg
Height 765 mm
Width 750 mm
Depth 125 mm
Thickness 2.5 mm
net weight 10.36 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 0.300 cm
Package 1 Width 74.000 cm
Package 1 Length 76.500 cm
Package 1 Weight 10.600 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 60
Package 2 Height 40.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 653.200 kg

Contractual warranty

Warranty 18 months
