Schneider Electric

NSYMFB

NSYMFB Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYMFB Schneider Electric

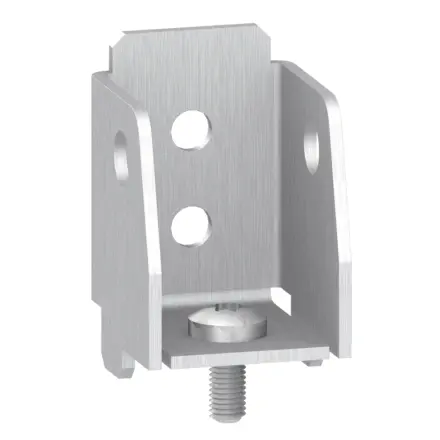

NSYMFB Schneider Electric - Fixing brackets for internal fixing of vertical rails at the same level of base

Extended Description for NSYMFB Schneider Electric

NSYMFB Schneider Electric - Fixing brackets for internal fixing of vertical rails for PanelSeT.,H is36 x W is 74 x D is144 mm.,For fixing at the same level of base. Mounting support on standard or technical uprights.,Fixing by screw type M6 self tapping. Adjustable in depth every 25 mm.,Steel made, zinc coated surface finish.,4 brackets for fixing uprights, fixing elements inlc.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£13.38 Exc. VAT
£16.06 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Mounting accessory
product or component type Fixing bracket
device application Multi-purpose
mounting support Standard or technical uprights
Range compatibility PanelSeT PanelSeT SF,PanelSeT PanelSeT SM,PanelSeT PanelSeT SD,PanelSeT PanelSeT SFX,PanelSeT PanelSeT SMX,PanelSeT PanelSeT SDX
Device composition fixing elements,4 brackets for fixing uprights
Quantity per set Set of 1
Material Steel

Complementary

Surface finish Zinc coated
Fixing mode By screws - screw type M6 self tapping
Adjustment Adjustable in depth every 25 mm
Height 36 mm
Width 74 mm
Depth 144 mm

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.000 cm
Package 1 Width 8.000 cm
Package 1 Length 15.500 cm
Package 1 Weight 321.000 g
Unit Type of Package 2 PAM
Number of Units in Package 2 500
Package 2 Height 25.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 77.000 kg

Logistical informations

Country of origin ES

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
