Schneider Electric

NSYMPRK16

NSYMPRK16 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYMPRK16 Schneider Electric

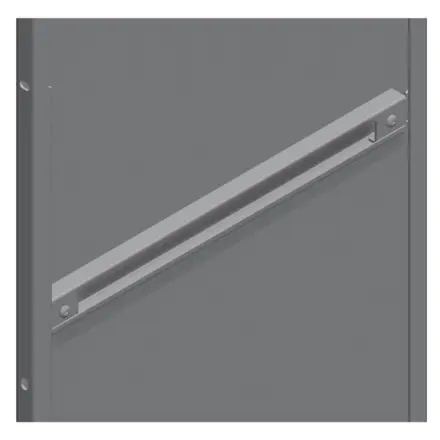

NSYMPRK16 Schneider Electric - "Reinforcement kit for mounting plate, PanelSeT SFN, SF, SM, W1600mm , set of 2 profiles"

Extended Description for NSYMPRK16 Schneider Electric

NSYMPRK16 Schneider Electric - This is a reinforcement kit for transversal mounting plate.,This product is suitable for PanelSeT SFN, PanelSeT SF and SFX electrical enclosures.,It provides extra rigidity to the mounting plates and absorbs vibrations.,The product can be used as a support for fixing very heavy elements.,The width is 1600mm. It is made of zinc-coated steel.,The product contains two profiles, four supports and fixing elements.,This product is qualified as a green premium, with minimal use of hazardous substances.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£94.05 Exc. VAT
£112.86 Inc. VAT

Main

category Mounting accessory
product or component type Reinforcement kit
Range compatibility PanelSeT SF,PanelSeT SM
Application Multi-purpose
Nominal dimensions of the housing -
Mounting location Rear of mounting plate
Device composition 2 profile,4 support, fixing elements
Quantity per set Set of 1
Material Steel

Complementary

Surface finish Zinc coated
Fixing mode By screws
Height 40 mm
Width Nominal: 1600 mm
Depth 20 mm
Thickness 1.5 mm

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 5.500 cm
Package 1 Length 147.000 cm
Package 1 Weight 3.237 kg
Unit Type of Package 2 PAL
Number of Units in Package 2 15
Package 2 Height 29.000 cm
Package 2 Width 37.500 cm
Package 2 Length 120.000 cm
Package 2 Weight 48.555 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD

Environmental disclosure
