Schneider Electric

NSYMR106

NSYMR106 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYMR106 Schneider Electric

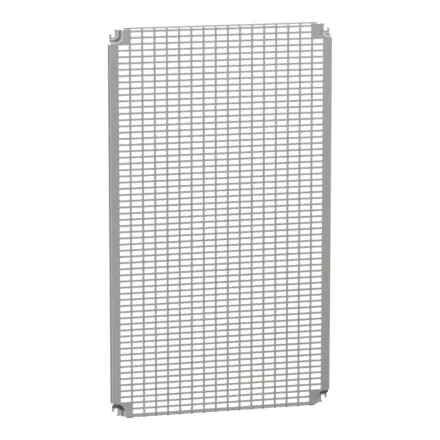

NSYMR106 Schneider Electric - Monobloc perforated plates H1000xW600mm with universal perforations 11x26mm

Free Delivery to UK Mainland on orders over £25

4 available
1 - 2 w.days
£88.36 Exc. VAT
£106.03 Inc. VAT

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£57.57 Exc. VAT
£69.08 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Mounting accessory
product or component type Mounting plate
device application Multi-purpose
Enclosure nominal dimensions - H: 1000 mm W: 600 mm
Mounting location Direct fixing on backstuds,Step slide
Mounting plate description Telequick perforated
Range compatibility PanelSeT PanelSeT S3D,PanelSeT PanelSeT CRN,Thalassa Thalassa PLM
Quantity per set Set of 1
Material Steel
Surface finish Zinc coated

Complementary

Fixing mode Screwed on backstuds - screw type M8,By fixing element
Height 945 mm
Width 551 mm
Depth 15 mm
Thickness 2 mm
net weight 4.04 kg
Number of slots 1088
Variant particularity Installation in rear of enclosure
cut-out dimensions 11 x 26 mm

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.000 cm
Package 1 Width 55.500 cm
Package 1 Length 94.500 cm
Package 1 Weight 3.818 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 100
Package 2 Height 89.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 398.500 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD

Environmental disclosure
