Schneider Electric

NSYMR1410

NSYMR1410 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYMR1410 Schneider Electric

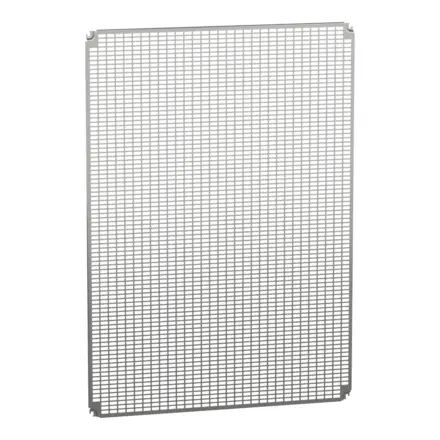

NSYMR1410 Schneider Electric - Monobloc perforated plates H1400xW1000mm with universal perforations 11x26mm

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£206.48 Exc. VAT
£247.78 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Mounting accessory
product or component type Mounting plate
device application Multi-purpose
Enclosure nominal dimensions - H: 1400 mm W: 1000 mm
Mounting location Step slide,Direct fixing on backstuds
Mounting plate description Telequick perforated
Range compatibility PanelSeT PanelSeT S3D,PanelSeT PanelSeT CRN,Thalassa Thalassa PLM
Quantity per set Set of 1
Material Steel
Surface finish Zinc coated

Complementary

Fixing mode Screwed on backstuds - screw type M8,By fixing element
Height 1345 mm
Width 951 mm
Depth 15 mm
Thickness 2 mm
net weight 8.626 kg
Number of slots 2728
Variant particularity Installation in rear of enclosure
cut-out dimensions 11 x 26 mm

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.500 cm
Package 1 Width 95.000 cm
Package 1 Length 134.500 cm
Package 1 Weight 9.000 kg
Unit Type of Package 2 PAL
Number of Units in Package 2 35
Package 2 Height 90.000 cm
Package 2 Width 220.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 380.000 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD

Environmental disclosure
