Schneider Electric

NSYPLA774G

NSYPLA774G Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYPLA774G Schneider Electric

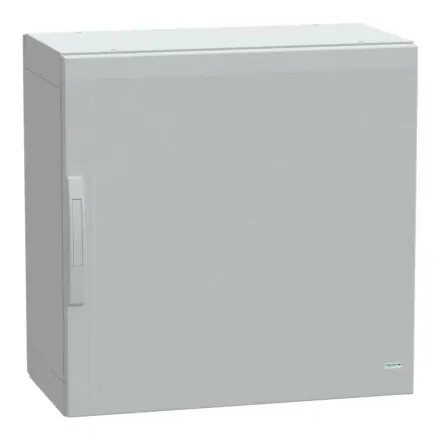

NSYPLA774G Schneider Electric - Floor standing enclosure polyester vers.PLA completely sealed 750x750x420 IP65

Extended Description for NSYPLA774G Schneider Electric

NSYPLA774G Schneider Electric - Thalassa PLA Floor standing polyester enclosure, version PLA.,750 x 750 x 420 mm.,Completely sealed.,2 points door locking system with 5-mm double-bar locks.,Polyester reinforced with fibreglass body.,Protection IP 54, IK10, Grey RAL 7035.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£376.76 Exc. VAT
£452.12 Inc. VAT

Main

Range Thalassa
Product name Thalassa PLA
Enclosure type Multi-purpose
product or component type Suitable enclosure
Version PLA
Nominal height 750 mm
Nominal width 750 mm
Nominal depth 420 mm
enclosure mounting Floor-standing
Device composition 1 top part,1 bottom part,2 side part,1 rear panel,1 door

Complementary

Body type Sealed top and bottom part assembled with side parts
Door type Plain front
Number of doors 1 door(s)
Door opening side Reversible (120 °)
Lock type 2 points lock, 5 mm double-bar
Accessibility for operation Rear,Front
Removable parts Door by hinges,Rear panel by fixing element
Material Polyester reinforced with fibreglass
Colour Grey (RAL 7035)
Standards IEC 62208,UL 508 A
NEMA degree of protection NEMA 5,NEMA 3S,NEMA 3,NEMA 12,NEMA 13,NEMA 2,NEMA 1,NEMA 3X,NEMA 3R
Product certifications Veritas,DNV Marine,UL/cUL listed
Electrical insulation class Class II

Environment

IP degree of protection IP65 conforming to IEC 60529 (completely sealed)
IK degree of protection IK10 conforming to IEC 62262 (plain door)
Fire resistance 960 °C conforming to IEC 62208
Ambient air temperature for storage -35…90 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 44.500 cm
Package 1 Width 76.000 cm
Package 1 Length 78.000 cm
Package 1 Weight 23.600 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 4
Package 2 Height 166.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 108.800 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
