NSYPLA774TG

NSYPLA774TG Schneider Electric - Floor standing encl. polyester vers.PLA compl.sealed 750x750x420 IP65 glazed

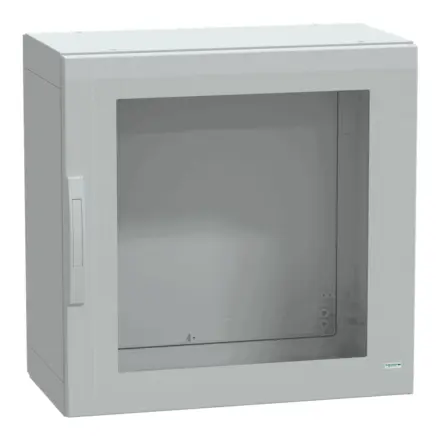

NSYPLA774TG Schneider Electric - This PLA is a multi-purpose, floor-standing enclosure suitable for various applications,It has a nominal height of 750mm, width of 750mm, and depth of 420mm and is made of polyester reinforced with fiberglass for durability and resistance to harsh environments, including outdoor and industrial settings,The enclosure is available in grey (RAL 7035) and consists of one top part, one bottom part, two side parts, one rear panel, and one door,The door is designed to open up to 120° from either the right or left side and is equipped with a two-point lock with a 5mm double-bar insert,The rear panel and door are removable for maintenance purposes,The enclosure offers robust protection against various hazards, including fire, impact, dust, and water,It can withstand fire up to 960°C in accordance with the IEC 62208 standard and is certified to UL 508 A,It also has an IK08 rating (IEC 62262) and is rated IP65 (IEC 60529) for high protection against dust and water,Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions,It is UL/cUL listed and DNV Marine certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance
