NSYPLAZ12104G

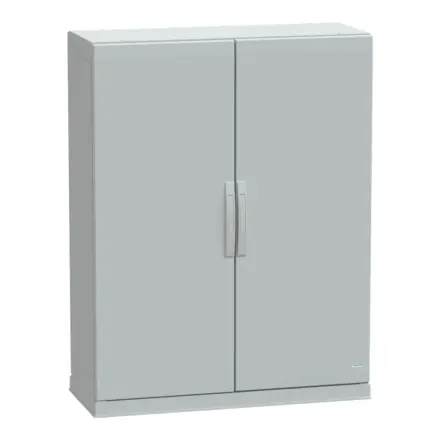

NSYPLAZ12104G Schneider Electric - Floor standing encl.polyester vers.PLAZ w/plinth open bottom 1250x1000x420 IP54

NSYPLAZ12104G Schneider Electric - This PLAZ version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for a variety of applications,It has a nominal height of 1250mm, a width of 1000mm, and a depth of 420mm,The enclosure is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments,It is available in grey (RAL 7035) and consists of two side parts, two plain front doors, two rear panels, and one plinth,The doors can be opened up to 120° from both the right and left sides, and feature a four-point lock with a handle that has a 5mm double-bar insert,The doors and rear panels can be removed for maintenance purposes,The enclosure offers robust protection against various hazards, including fire, impact, dust, and water,It can withstand fire up to 960°C, in accordance with the IEC 62208 standard,It has an IK10 rating (IEC 62262), indicating high resistance to impacts, and an IP54 rating (IEC 60529), providing protection against dust and water,Additionally, the enclosure has class II electrical insulation to prevent electric shocks and enable the construction of totally insulated solutions,It is UL certified and can be stored in ambient air temperatures ranging from -35 to 90°C without affecting its performance,It is designed for easy access to the equipment inside, with rear, bottom, and front accessibility
