NSYPLAZT1053G

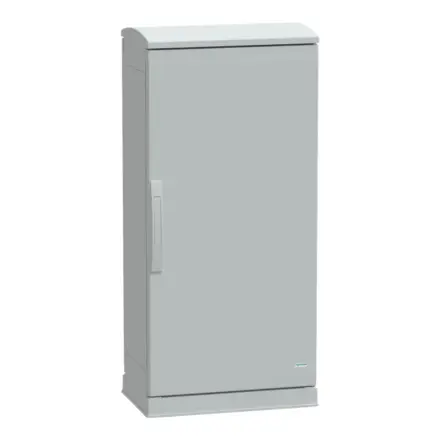

NSYPLAZT1053G Schneider Electric - Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 1000x500x320 IP44

NSYPLAZT1053G Schneider Electric - This PLAZT version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications,The enclosure has a nominal height of 1000mm, width of 500mm, and depth of 320mm, and is made of polyester reinforced with fiberglass for durability and resistance to harsh environments,It is available in grey (RAL 7035) and includes two side parts, one plain front door, one rear panel, one canopy, and one plinth,The reversible door can be opened up to 180° from either the right or left side, and is secured with a four-point lock and 5mm double-bar insert handle,The door, rear panel, and canopy can be removed for maintenance purposes,The enclosure offers robust protection against fire, impacts, dust, and water,It can withstand fire up to 960°C, in accordance with IEC 62208, and has an IK10 rating (IEC 62262) for high impact resistance,It is rated IP44 (IEC 60529) for protection against dust and water, and has Class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions,It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance
