NSYPLM32BG

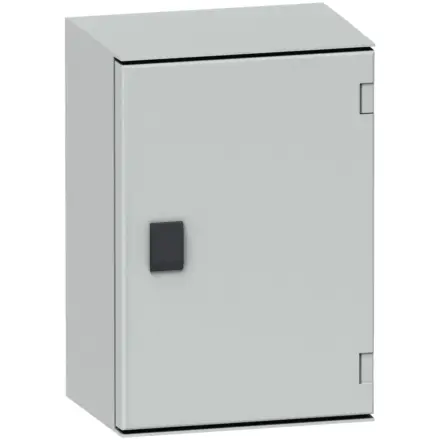

NSYPLM32BG Schneider Electric - wall-mounting encl. ABS/PC monobloc IP66 H310xW215xD160mm+bakelite mount.plate

NSYPLM32BG Schneider Electric - This PLM is a multi-purpose wall-mounted enclosure that is suitable for a variety of applications,It has a nominal height, width, and depth of 310 mm, 215 mm, and 160 mm, respectively,The enclosure is made of ABS + PC, which offers durability and resistance to industrial and outdoor environments,It comes in a grey (RAL 7035) color and consists of one body, one door, one lock, and one mounting plate,The door is plain and can be opened from the front using the 3 mm double-bar lock,The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529), as well as high resistance to impacts with an IK10 rating (IEC 62262),It also offers protection against electric shocks with a class II electrical insulation rating,The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance,The door is removable by hinges and the mounting plate is removable by fixing elements,The enclosure is compliant with NEMA classification 13, IEC 62208, and NEMA classification 4X standards and offers a fire resistance of 960°C (IEC 62208)
