Schneider Electric

NSYPLM32TG

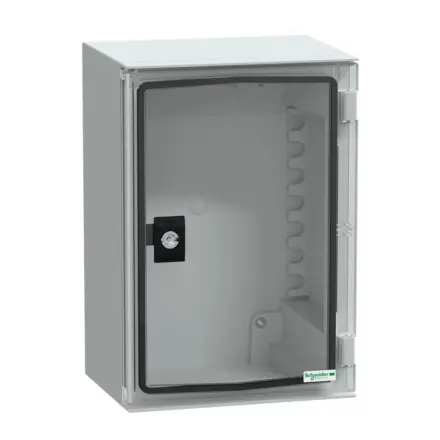

NSYPLM32TG Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYPLM32TG Schneider Electric

NSYPLM32TG Schneider Electric - wall-mounting encl. ABS/PC monobloc IP66 H310xW215xD160mm transparent door

Extended Description for NSYPLM32TG Schneider Electric

NSYPLM32TG Schneider Electric - Thalassa PLM wall-mounting ABS/PC enclosure monobloc w/transparent door.,310 x 215 x 160 mm.,Built-in canopy, one piece moulded with notches in the rear. Without mounting plate.,1 lock (3 mm double-bar lock). Accessible front.,ABS + PC material, Polycarbonate door.,Grey RAL 7035.,IP66, IK10, NEMA (13,4X) 960°C fire resistance.

Free Delivery to UK Mainland on orders over £25

Manufacturer New

16 available
1 - 2 w.days
£157.94 Exc. VAT
£189.53 Inc. VAT

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£68.73 Exc. VAT
£82.48 Inc. VAT

Main

Range Thalassa
Product name Thalassa PLM
Device short name PLM
Enclosure type Multi-purpose
Category Compact enclosure
Nominal height 310 mm
Nominal width 215 mm
Nominal depth 160 mm
enclosure mounting Wall mounted
Device composition 1 body,1 door,1 lock
Door type Transparent
Lock type 3 mm double-bar lock

Complementary

Number of locks 1
Mounting plate description Without mounting plate
Accessibility for operation Front
Removable parts Door by hinges
Material Door: polycarbonate,Body: ABS + PC
Colour Grey (RAL 7035)
Standards NEMA classification 13,NEMA classification 4X,IEC 62208
Electrical insulation class Class II

Environment

IP degree of protection IP66 conforming to IEC 60529
IK degree of protection IK10 conforming to IEC 62262
Fire resistance 960 °C conforming to IEC 62208
Ambient air temperature for operation -40…80 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 17.000 cm
Package 1 Width 23.000 cm
Package 1 Length 32.000 cm
Package 1 Weight 1.480 kg
Unit Type of Package 2 P12
Number of Units in Package 2 70
Package 2 Height 130.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 109.500 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
