Schneider Electric

NSYPLM43BG

NSYPLM43BG Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYPLM43BG Schneider Electric

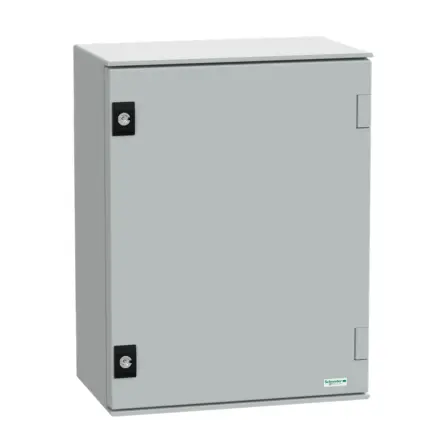

NSYPLM43BG Schneider Electric - wall-mounting encl. polyester monobloc IP66 H430xW330xD200mm+bakelite mount.pl.

Extended Description for NSYPLM43BG Schneider Electric

NSYPLM43BG Schneider Electric - This PLM is a wall-mounted enclosure suitable for multi-purpose applications,The enclosure has a nominal height, width, and depth of 430 mm, 330 mm, and 200 mm, respectively,It is made of polyester reinforced with fibreglass, making it durable and resistant to industrial and outdoor environments,The enclosure comes in a grey (RAL 7035) color,The enclosure consists of one body, one door, one mounting plate, and two locks,The door is plain and can be opened from the front and has two 3 mm double-bar locks,The mounting plate is plain bakelite,The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529),It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating,The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£117.09 Exc. VAT
£140.51 Inc. VAT

Main

Range Thalassa
Product name Thalassa PLM
Device short name PLM
Enclosure type Multi-purpose
Category Compact enclosure
Nominal height 430 mm
Nominal width 330 mm
Nominal depth 200 mm
enclosure mounting Wall mounted
Device composition 1 body,1 door,1 mounting plate,2 lock
Door type Plain
Lock type 3 mm double-bar lock

Complementary

Number of locks 2
Mounting plate description Plain bakelite
Accessibility for operation Front
Removable parts Door by hinges,Mounting plate by fixing element
Material Polyester reinforced with fibreglass
Colour Grey (RAL 7035)
Standards IEC 62208,NEMA classification 13,NEMA classification 4X
Product certifications UL
Electrical insulation class Class II

Environment

IP degree of protection IP66 conforming to IEC 60529
IK degree of protection IK10 conforming to IEC 62262
Fire resistance 960 °C conforming to IEC 62208
Ambient air temperature for operation -40…80 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 50.000 cm
Package 1 Width 35.000 cm
Package 1 Length 23.000 cm
Package 1 Weight 5.946 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 50
Package 2 Height 213.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 310.000 kg

Logistical informations

Country of origin ES

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
