Schneider Electric

NSYS3D5525T

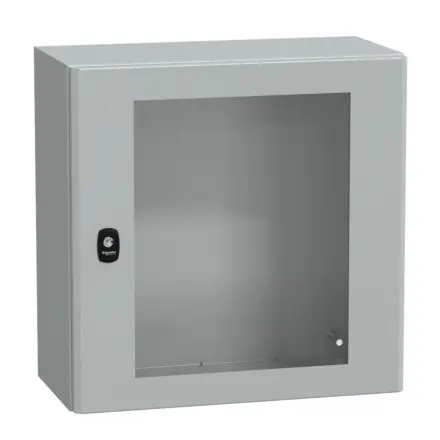

NSYS3D5525T Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYS3D5525T Schneider Electric

NSYS3D5525T Schneider Electric - "PanelSeT S3D tspt door w/o mount.plate. H500xW50xD250 IP66 IK08 RAL7035."

Extended Description for NSYS3D5525T Schneider Electric

NSYS3D5525T Schneider Electric - PanelSeT S3D wall mounted steel enclosure with glazed door.,500 x 500 x 250 mm.,Single piece body, without mounting plate. Robust construction based on a new design.,3-point closure system with handle and 3 mm double bar lock insert.,Steel made, epoxy-polyester powder finish.,Gutter shaped front rail double sheet thickness.,Protection IP 66, IK08, Grey RAL 7035.,1 cable gland plate included, standard.,Extensive range of accessories. Packaging is reusable after assembly.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£178.13 Exc. VAT
£213.75 Inc. VAT

Main

Range PanelSeT
Product name PanelSeT S3D
Application Multi-purpose
Category Compact enclosure
Enclosure nominal height 500 mm
Enclosure nominal width 500 mm
Enclosure nominal depth 250 mm
Door type Glazed
Mounting plate description Without mounting plate
Type of gland plate Standard
Installation accessory type Wall-mounting
Device composition 1 body,1 door,1 lock,1 cable gland plate

Complementary

body type Single piece body,Gutter-shaped front rail double sheet thickness
Number of doors Front face: 1 door(s)
Door opening side Reversible (120 °)
Lock type 3 mm double-bar lock
Accessibility for operation Front
Removable parts Door by hinges,Cable gland plate by screws
Material Body: steel,Door: steel and security glass
Surface finish Epoxy-polyester powder
Colour Grey (RAL 7035)
Standards IEC 62208
Product certifications BV,UL,DNV,GL,cUL
net weight 11.9 kg

Environment

Electromagnetic compatibility Electromagnetic field immunity test
NEMA degree of protection NEMA 4X/13
IK degree of protection IK08 conforming to IEC 62262
IP degree of protection IP66 conforming to IEC 60529

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 29.500 cm
Package 1 Width 51.500 cm
Package 1 Length 52.000 cm
Package 1 Weight 11.958 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 18
Package 2 Height 180.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 210.000 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
