Schneider Electric

NSYS3DB3315

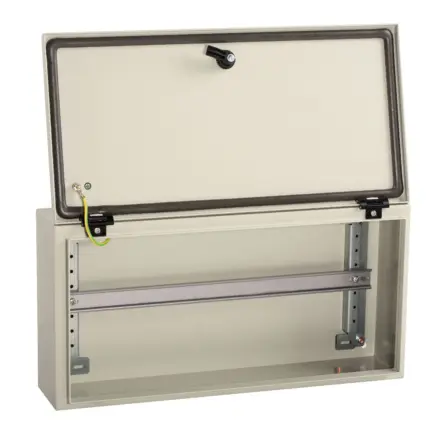

NSYS3DB3315 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYS3DB3315 Schneider Electric

NSYS3DB3315 Schneider Electric - Spacial S3DB H300xW300xD150. IP66, IK10, RAL7035. No

Extended Description for NSYS3DB3315 Schneider Electric

NSYS3DB3315 Schneider Electric - Spacial S3DB compact enclosure.,H is300xW is300xD is150 mm.,For equipping with terminal. No mounting plate or cable gland included. 1 front face/door.,Wall mounting install (Horz/Vert). Gutter-shaped front rail double sheet thickness particularity.,Steel made, epoxy-polyester powder finish.,Protection IP 66, IK10, Grey RAL 7035.,Certifications is BV, CUL, DNV, GL, LR, UL.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£243.65 Exc. VAT
£292.38 Inc. VAT

Main

Range Spacial
Product name Spacial S3DB
Application Terminal application
Category Compact enclosure
Enclosure nominal height 300 mm
Enclosure nominal width 300 mm
Enclosure nominal depth 150 mm
Door type Plain
Mounting plate description Without mounting plate
Type of gland plate Without gland plate
Installation accessory type Wall-mounting,Horizontal or vertical position
Product destination For equipping with terminal
Device composition 1 body,1 door,1 lock

Complementary

body type Single piece body,Gutter-shaped front rail double sheet thickness
Number of doors Front face: 1 door(s)
Door opening side Reversible (180 °)
Lock type 3 mm double-bar lock
Accessibility for operation Front
Removable parts Door by hinges
Material Steel
Surface finish Epoxy-polyester powder
Colour Grey (RAL 7035)
Standards IEC 62208
Product certifications cUL,BV,LR,UL,GL,DNV
net weight 3.862 kg

Environment

NEMA degree of protection NEMA 4X/13
IK degree of protection IK10 conforming to IEC 62262
IP degree of protection IP66 conforming to IEC 60529

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 19.0 cm
Package 1 Width 31.5 cm
Package 1 Length 32.0 cm
Package 1 Weight 3.862 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 90
Package 2 Height 209.0 cm
Package 2 Width 100.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 368.0 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD
