Schneider Electric

NSYS3X121030H

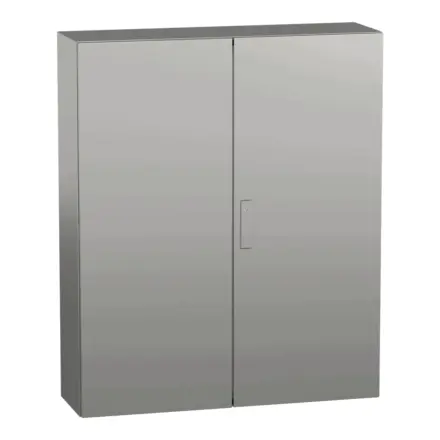

NSYS3X121030H Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYS3X121030H Schneider Electric

NSYS3X121030H Schneider Electric - "PanelSet S3X stainless 316L, Scotch Brite® finish, H1200xW1000xD300 mm."

Extended Description for NSYS3X121030H Schneider Electric

NSYS3X121030H Schneider Electric - PanelSet S3X stainless steel 316L wall-mounting enclosure for a multi-purpose application and resistance to corrosion,It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529),This enclosure has a nominal height, width and depth of 1200mm, 1000mm and 300mm respectively,The enclosure is made with Scotch-Brite® brushed surface finish,The enclosure consists of a body, two plain doors and one lock,The doors can be opened up to 120°, allowing easy access to the equipment inside,It is possible to change the opening side of the door (reversible),The door has a three lock points lock with a 3mm double-bar insert,The doors can be removed for maintenance purposes,The net weight of the enclosure is 51,6kg,It is certified to UL 508 type A and CAN/CSA 22 standards

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£2,745.26 Exc. VAT
£3,294.31 Inc. VAT

Main

Range Spacial
Product name Spacial S3X
enclosure type Multi-purpose
category Compact enclosure
nominal height 1200 mm
nominal width 1000 mm
nominal depth 300 mm
product installation Wall-mounting
Device composition 1 body,2 door,1 lock: door,1 reinforcement frame drilled: door

Complementary

Body type Single piece body, cross-shaped structure,Gutter shaped front rail
Door type Plain
Number of doors Front face: 2 door(s)
Door opening side Reversible (120 °)
Lock type 3 points lock, 3 mm double-bar
Mounting plate description Without mounting plate
Type of gland plate Without gland plate
Accessibility for operation Front
Removable parts Door by hinges
Material Hinge: stainless steel,Body and door: stainless steel 316L
Surface finish Body and door: Scotch-Brite® brushed
net weight 51.6 kg

Environment

Standards IEC 62208
Product certifications UL 508 type A,CAN/CSA 22
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK10 conforming to IEC 62262
Environmental characteristic Specific hygiene,Corrosive

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 32.000 cm
Package 1 Width 101.000 cm
Package 1 Length 122.000 cm
Package 1 Weight 51.600 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 4
Package 2 Height 140.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 228.000 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
