Schneider Electric

NSYS3X4320H

NSYS3X4320H Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYS3X4320H Schneider Electric

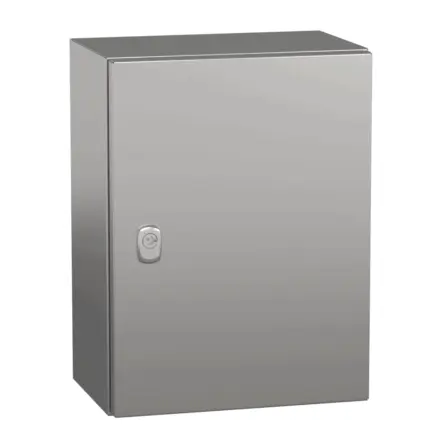

NSYS3X4320H Schneider Electric - "PanelSet S3X stainless 316L, Scotch Brite® finish, H400xW300xD200 mm."

Extended Description for NSYS3X4320H Schneider Electric

NSYS3X4320H Schneider Electric - PanelSet S3X stainless steel 316L wall-mounting enclosure is perfect for multi-purpose applications and is designed for use in harsh environments,It is certified to CAN/CSA 22 and UL 508 type A, and has a IK10 (IEC62262) rating and IP66 (IEC60529) rating for high resistance to dust and water,The enclosure has a nominal height, width and depth of 400mm, 300mm and 200mm respectively,The enclosure is made with Scotch-Brite® brushed surface finish and has a single piece body with a cross-shaped structure and a gutter shaped front rail,It has one plain door with a 3mm double-bar lock, which can be opened up to 120°, allowing easy access to the equipment inside,The door can be removed for maintenance purposes and the reversible opening side of the door allows for flexibility,The net weight of the enclosure is 5,594kg

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£409.45 Exc. VAT
£491.34 Inc. VAT

Main

Range Spacial
Product name Spacial S3X
enclosure type Multi-purpose
category Compact enclosure
nominal height 400 mm
nominal width 300 mm
nominal depth 200 mm
product installation Wall-mounting
Device composition 1 body,1 lock: door,1 door

Complementary

Body type Single piece body, cross-shaped structure,Gutter shaped front rail
Door type Plain
Number of doors Front face: 1 door(s)
Door opening side Reversible (120 °)
Lock type 3 mm double-bar lock
Mounting plate description Without mounting plate
Type of gland plate Without gland plate
Accessibility for operation Front
Removable parts Door by hinges
Material Lock: zamak,Hinge: stainless steel,Body and door: stainless steel 316L
Surface finish Body and door: Scotch-Brite® brushed,Lock: chromium plated
net weight 5.594 kg

Environment

Standards IEC 62208
Product certifications CAN/CSA 22,UL 508 type A
IP degree of protection IP66 conforming to IEC 60529
IK degree of protection IK10 conforming to IEC 62262
Environmental characteristic Corrosive,Specific hygiene

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 22.000 cm
Package 1 Width 31.500 cm
Package 1 Length 41.500 cm
Package 1 Weight 5.594 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 64
Package 2 Height 181.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 371.000 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
