Schneider Electric

NSYS3X7525T

NSYS3X7525T Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYS3X7525T Schneider Electric

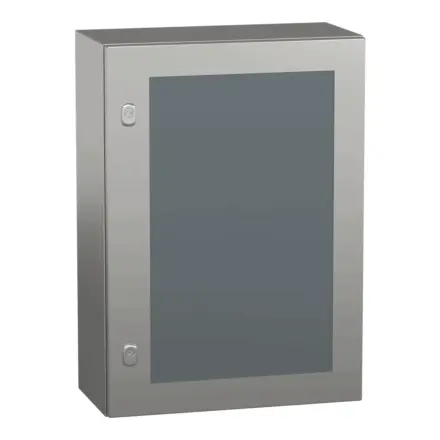

NSYS3X7525T Schneider Electric - "PanelSet S3X stainless 304L, Scotch Brite® finish, H700xW500xD250 mm."

Extended Description for NSYS3X7525T Schneider Electric

NSYS3X7525T Schneider Electric - SPACIAL S3X Scotch Brite compact enclosure.,H is700xW is500xD is250 mm.,For corrosive/specific hygiene. No mounting plate included. 3 mm double-bar lock. Glazed door.,Wall mounting installation. Gutter-shaped front rail, single piece body.,Stainless steel 304L body, Scotch-Brite brushed surface. Security glass.,Protection IP 66, IK08, Grey RAL 7035.,Certifications is CAN/CSA 22, UL 508 type A.

Free Delivery to UK Mainland on orders over £25

3 available
1 - 2 w.days
£981.51 Exc. VAT
£1,177.81 Inc. VAT

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£847.00 Exc. VAT
£1,016.40 Inc. VAT

Main

Range Spacial
Product name Spacial S3X
enclosure type Multi-purpose
category Compact enclosure
nominal height 700 mm
nominal width 500 mm
nominal depth 250 mm
product installation Wall-mounting
Device composition 1 body,1 lock: door,1 door

Complementary

Body type Single piece body, cross-shaped structure,Gutter shaped front rail
Door type Glazed
Number of doors Front face: 1 door(s)
Door opening side Reversible (120 °)
Lock type 2 points lock, 3 mm double-bar
Mounting plate description Without mounting plate
Type of gland plate Without gland plate
Accessibility for operation Front
Removable parts Door by hinges
Material Body and door: stainless steel 304L,Lock: zamak,Hinge: stainless steel,Door: Securit glass
Surface finish Body and door: Scotch-Brite® brushed,Lock: chromium plated
net weight 16.596 kg

Environment

Standards IEC 62208
Product certifications CAN/CSA 22,UL 508 type A
IP degree of protection IP66 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Environmental characteristic Specific hygiene,Corrosive

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 27.000 cm
Package 1 Width 51.000 cm
Package 1 Length 71.500 cm
Package 1 Weight 16.596 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 21
Package 2 Height 195.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 362.000 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
