Schneider Electric

NSYS3X801230

NSYS3X801230 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYS3X801230 Schneider Electric

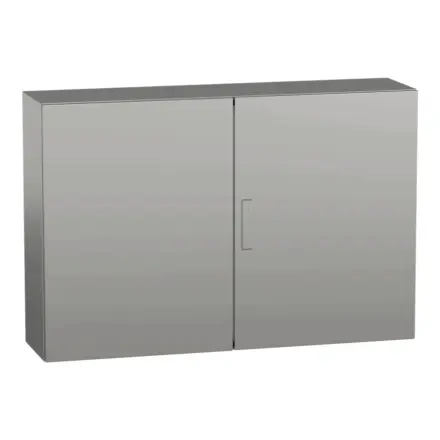

NSYS3X801230 Schneider Electric - "PanelSet S3X - stainless steel 304L- Scotch Brite® finish - H800xW1200xD300 mm."

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,579.19 Exc. VAT
£1,895.03 Inc. VAT

Main

Range Spacial
Product name Spacial S3X
enclosure type Multi-purpose
category Compact enclosure
nominal height 800 mm
nominal width 1200 mm
nominal depth 300 mm
product installation Wall-mounting
Device composition 1 body,1 lock: door,2 perforated vertical profile drilled: door,2 doors

Complementary

Body type Single piece body, cross-shaped structure,Gutter shaped front rail
Door type Plain
Number of doors Front face: 2 door(s)
Door opening side Reversible (120 °)
Lock type 3 points lock, 3 mm double-bar
Mounting plate description Without mounting plate
Type of gland plate Without gland plate
Accessibility for operation Front
Removable parts Door by hinges
Material Body and door: stainless steel 304L,Lock: zamak,Hinge: stainless steel
Surface finish Body and door: Scotch-Brite® brushed,Lock: chromium plated
net weight 43 kg

Environment

Standards IEC 62208
Product certifications UL 508 type A,CAN/CSA 22
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK10 conforming to IEC 62262
Environmental characteristic Corrosive,Specific hygiene

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 82.000 cm
Package 1 Width 121.500 cm
Package 1 Length 32.000 cm
Package 1 Weight 43.000 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 4
Package 2 Height 137.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 190.600 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
