Schneider Electric

NSYSCMX10030

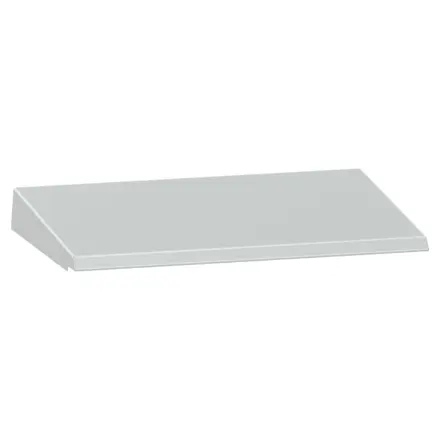

NSYSCMX10030 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYSCMX10030 Schneider Electric

NSYSCMX10030 Schneider Electric - "SMX Canopy 304L 1000x300"

Extended Description for NSYSCMX10030 Schneider Electric

NSYSCMX10030 Schneider Electric - Multi-purpose canopy for PanelSeT SMX enclosures,The canopy is to be installed on all enclosure models with 1000mm width and 300mm depth,The width is 1008mm,The depth is 322mm,The height is 42mm,Fixed by 4 screws - screw type M6 - same holes as the eyebolts location on top of enclosure,The canopy is made from 1,5mm stainless steel 304L (color RAL 7035),Provides high resistance to impacts, temperature and bad weather,Anti-corrosion protection is ensured by Scotch-Brite® brushed coating,The kit is made up of 1 canopy and fixing elements,Net weight is 6,9kg

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£483.36 Exc. VAT
£580.03 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Enclosure accessory
product or component type Canopy
Application Multi-purpose
Range compatibility PanelSeT PanelSeT SMX
For enclosure nominal dimensions -
Mounting location On top of enclosure
Device composition 1 canopy, fixing elements

Complementary

Quantity per set Set of 1
Material Stainless steel 304L
Colour Grey (RAL 7035)
Surface finish Scotch-Brite® brushed
Fixing mode By 4 screws - screw type M6 - same holes as the eyebolts location
Height 42 mm
Width 1008 mm
Depth 322 mm
Thickness 1.5 mm
net weight 6.9 kg
Mounting diameter 8 mm

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.500 cm
Package 1 Width 36.000 cm
Package 1 Length 111.000 cm
Package 1 Weight 6.630 kg
Unit Type of Package 2 P12
Number of Units in Package 2 10
Package 2 Height 64.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 76.500 kg

Logistical informations

Country of origin ES

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
