Schneider Electric

NSYSF20480

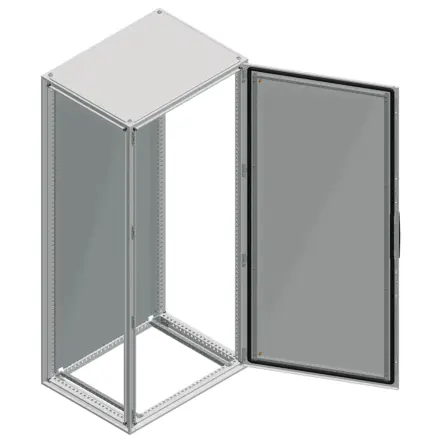

NSYSF20480 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYSF20480 Schneider Electric

NSYSF20480 Schneider Electric - Spacial SF enclosure without mounting plate - assembled - 2000x400x800 mm

Extended Description for NSYSF20480 Schneider Electric

NSYSF20480 Schneider Electric - Spacial SF suitable steel enclosure with plain front door.,1999 x 400 x 800 mm.,Assembled. Screw fixed rear panel. Without mounting plate.,4-point closure system with handle and 5 mm double bar lock insert.,Galvanised steel for frame and uprights.,Protection IP 55, IK10, Grey RAL 7035.,4 mounting plate support brackets included.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£899.43 Exc. VAT
£1,079.32 Inc. VAT

Main

Range Spacial
Extended range Spacial SF
Application Multi-purpose
product or component type Suitable enclosure
Enclosure nominal height 2000 mm
Enclosure nominal width 400 mm
Enclosure nominal depth 800 mm
enclosure mounting Floor-standing
Device composition 1 roof,1 door,1 locking system with handle: door,1 structure,1 rear panel

Complementary

Structure type Formed from a single section,Perforated structure with a pitch of 25 mm,Panels and doors built into the structure,Vertical uprights joined with top and bottom frames
Door opening side Reversible (120 °)
Door type Plain front
Mounting plate description Without mounting plate
Type of gland plate Without gland plate
Lock type 4 points lock, handle with 5 mm double bar insert front door
Number of doors Front: 1 door(s)
Accessibility for operation Sides of enclosure,Rear,Front
Removable parts Door by screws hinge,Rear panel by screws,Roof by screws,Mounting plate bracket by screws,Sliding rail by screws
Material Frame: galvanised steel,Uprights: galvanised steel,Door: sheet steel,Panels: sheet steel,Hinge: zamak,Handle: polyamide 6 with 30 % fibre glass
Surface finish Epoxy-polyester powder
Colour Enclosure: grey (RAL 7035),Handle: black (RAL 9005)
net weight 79.5 kg

Environment

Standards IEC 62208
NEMA degree of protection NEMA 3R/12
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK10 conforming to IEC 62262

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 44.5 cm
Package 1 Width 89.0 cm
Package 1 Length 213.0 cm
Package 1 Weight 72.0 kg
Unit Type of Package 2 PAL
Number of Units in Package 2 2
Package 2 Height 213.0 cm
Package 2 Width 85.0 cm
Package 2 Length 98.0 cm
Package 2 Weight 144.0 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
