Schneider Electric

NSYSMHR10

NSYSMHR10 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYSMHR10 Schneider Electric

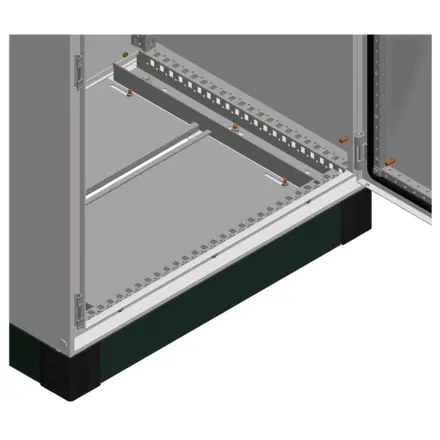

NSYSMHR10 Schneider Electric - "PanelSeT SM horizontal adaptation profiles - 1000 mm"

Extended Description for NSYSMHR10 Schneider Electric

NSYSMHR10 Schneider Electric - PanelSeT SM horizontal adaptation profiles.,1000 mm.,Allows to have fixation points in the external frame of the monobloc enclosure.,Mounting on top and bottom front of enclosure. Horizontal installation.,Steel made, zinc coated surface finish.,2 profiles and fixing screws included.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£46.45 Exc. VAT
£55.74 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Mounting accessory
product or component type Adaptation profile
Application Multi-purpose
Nominal dimensions of the housing -

Complementary

Range compatibility PanelSeT PanelSeT SM
Mounting location Top and bottom front of enclosure
Installation direction Horizontal
Device composition fixing screws,2 profile
Quantity per set Set of 1
Material Steel
Surface finish Zinc coated
Fixing mode By screws - on front fixing point location
Height 24.5 mm
Width Real: 780 mm,Nominal: 1000 mm
Depth 42 mm
Thickness 1.5 mm

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.000 cm
Package 1 Width 5.500 cm
Package 1 Length 80.000 cm
Package 1 Weight 1.354 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 100
Package 2 Height 25.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 145.600 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD

Environmental disclosure
