Schneider Electric

NSYSMX141030

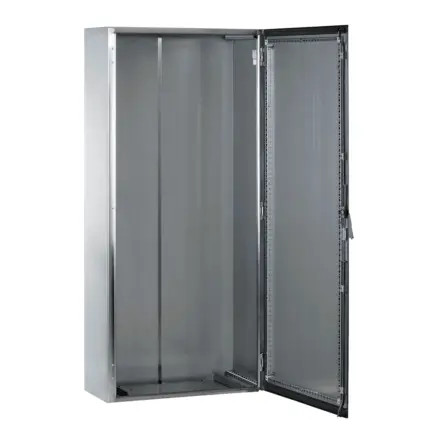

NSYSMX141030 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYSMX141030 Schneider Electric

NSYSMX141030 Schneider Electric - SMX 304L stainless monobloc enclosure, H1400xW1000xD300mm, Scotch Brite® finish.

Extended Description for NSYSMX141030 Schneider Electric

NSYSMX141030 Schneider Electric - PanelSeT SMX stainless steel 304L floor-standing enclosure is designed for multi-purpose applications and resistance to corrosion,It is designed for use in harsh environments and can withstand high impact due to its IK10 (IEC62262) rating and its IP55 (IEC60529) rating for dust and water resistance,This enclosure has a nominal height, width and depth of 1400mm, 1000mm and 300mm respectively,The enclosure is made with a Scotch-Brite® brushed surface finish,The enclosure consists of a body, a cable gland plate, two plain doors, four mounting plate brackets, and a locking system with handle on the door,The doors can be opened up to 120°, allowing easy access to the equipment inside,The enclosure has a three-point lock with a handle with 5mm double-bar insert,The doors and the mounting plate brackets can be removed for maintenance purposes,The net weight of the enclosure is 89kg and it is certified to UL 508 and CAN/CSA 22 standards

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£3,210.65 Exc. VAT
£3,852.77 Inc. VAT

Main

Range PanelSeT
Product name PanelSeT SMX
enclosure type Multi-purpose
category Compact enclosure
nominal height 1400 mm
nominal width 1000 mm
nominal depth 300 mm
product installation Floor-standing
Device composition 1 body,2 door,1 cable gland plate,1 locking system with handle: door,4 mounting plate bracket

Complementary

Body type Single piece body folded and welded
Door type Plain
Door opening side Reversible (120 °)
Number of doors Front face: 2 door(s)
Lock type 3 points lock, handle with 5 mm double-bar insert
Type of gland plate Plain
Accessibility for operation Front
Mounting plate description Without mounting plate
Material Body and door: stainless steel 304L,Handle: zamak,Hinge: stainless steel
Removable parts Door by hinges,Mounting plate bracket by screws,Cable gland plate by clips
Surface finish Enclosure: Scotch-Brite® brushed,Handle: painted
net weight 89 kg

Environment

Standards IEC 62208
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK10 conforming to IEC 62262
Product certifications UL 508,CAN/CSA 22
Environmental characteristic Specific hygiene,Corrosive

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 153.000 cm
Package 1 Width 105.000 cm
Package 1 Length 39.000 cm
Package 1 Weight 88.000 kg

Logistical informations

Country of origin BG

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
