Schneider Electric

NSYSPFVX8200

NSYSPFVX8200 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYSPFVX8200 Schneider Electric

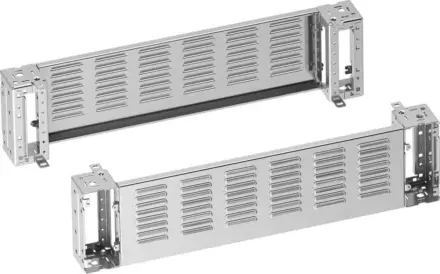

NSYSPFVX8200 Schneider Electric - "PanelSet S3HD SFHD - outdoor heavy duty - front ventilated plinth- H200 W800 IP55"

Extended Description for NSYSPFVX8200 Schneider Electric

NSYSPFVX8200 Schneider Electric - Ventilated front plinth for outdoor heavy duty applications to be used with PanelSet SFHD and PanelSet S3HD enclosures,The ventilated front plinth is to be used in multi-purpose applications,The nominal width is 800mm,The height is 200mm,The kit is made of fixing elements, 4 corner covers, 1 front panel, 1 rear panel and 4 corners,The product is made of Material : Stainless steel,Net weight is 9kg,Ingress protection rating is IP55 (completed plinth with grille and filter),Mechanical protection rating is IK10,This product is qualified as a green premium, with minimal use of hazardous substances

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£450.01 Exc. VAT
£540.01 Inc. VAT

Main

Range PanelSeT
Application Outdoor heavy duty
accessory / separate part category Enclosure accessory
product or component type Ventilated front plinth
Application Multi-purpose
Nominal dimensions of the housing -
Device composition fixing elements,4 corner cover,1 front panel,1 rear panel,4 corner
Range compatibility PanelSeT PanelSeT SFHD,PanelSeT PanelSeT S3HD
Mounting support Fixing kit S3HD,Set plinth side panels SFHD

Complementary

Fixing mode By fixing element - on structure location
Surface finish Untreated
Height 200 mm
Width Nominal: 800 mm
net weight 9 kg

Environment

IP degree of protection IP55 (completed plinth with grille and filter)
IK degree of protection IK10

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 19.000 cm
Package 1 Width 21.000 cm
Package 1 Length 80.500 cm
Package 1 Weight 9.670 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 20
Package 2 Height 98.000 cm
Package 2 Width 100.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 206.000 kg

Logistical informations

Country of origin IN

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

Environmental disclosure
