Schneider Electric

NSYSUCR300WM

NSYSUCR300WM Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYSUCR300WM Schneider Electric

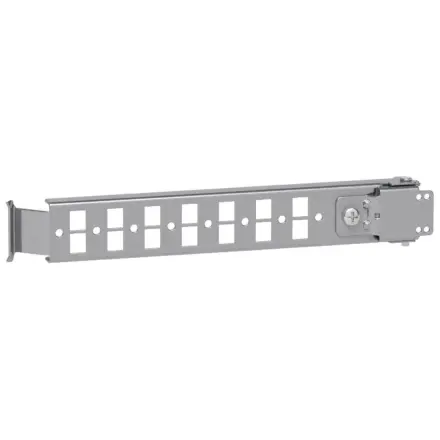

NSYSUCR300WM Schneider Electric - Mounting rail for wall mounting enclosure S3D/CRN - depth 300

Extended Description for NSYSUCR300WM Schneider Electric

NSYSUCR300WM Schneider Electric - Mounting rail made from zinc plated steel for use with PanelSeT S3D compact enclosure and PanelSeT CRN compact enclosure with depth 300mm,Can be fixed top and bottom of the enclosure and sides of enclosure,The nominal height is 300mm,The kit is made up of 1 rail and 1 bag of fixing,Maximum load is 6kg,Net weight is 0,46kg

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£32.56 Exc. VAT
£39.07 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Mounting accessory
product or component type Mounting rail
Application Multi-purpose
Nominal dimensions of the housing - D: 300 mm

Complementary

Range compatibility PanelSeT PanelSeT S3D compact enclosure,PanelSeT PanelSeT CRN compact enclosure
Mounting location Top and bottom of the enclosure,Sides of enclosure
Installation direction Horizontal
Device composition 1 rail,1 bag of fixing
Quantity per set Set of 2
Material Steel
Surface finish Zinc plated
Fixing mode By screws - screw type M6
Maximum load 6 kg
Height Nominal: 300 mm
net weight 0.46 kg

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 6.000 cm
Package 1 Length 31.500 cm
Package 1 Weight 462.000 g
Unit Type of Package 2 P12
Number of Units in Package 2 150
Package 2 Height 48.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 85.300 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
