Schneider Electric

NSYSUCR4030

NSYSUCR4030 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYSUCR4030 Schneider Electric

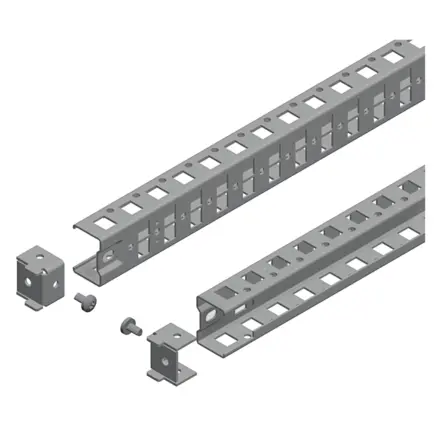

NSYSUCR4030 Schneider Electric - "Universal cross rails, PanelSeT SFN, SF, SM, H300 W40mm, 1 row, set of 2"

Extended Description for NSYSUCR4030 Schneider Electric

NSYSUCR4030 Schneider Electric - PanelSeT SF/SM universal perforated cross rails.,39 mm (1 row) x 300 mm.,Perforated on 25 mm pitch.,In zinc-plated steel, thickness 1.5 mm.,Set of 2.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£17.43 Exc. VAT
£20.92 Inc. VAT

Main

Range PanelSeT
accessory / separate part category Mounting accessory
product or component type Universal cross rail
Application Multi-purpose
Nominal dimensions of the housing - H: 300 mm

Complementary

Range compatibility PanelSeT PanelSeT SF,PanelSeT PanelSeT SM,PanelSeT PanelSeT SFX,PanelSeT PanelSeT SMX
Mounting location Between cross rails,On structure of enclosure
Mounting support Adaptation profile, on SM enclosures
Device composition fixing elements,2 cross rails,4 supports
Quantity per set Set of 1
Material Steel
Surface finish Galvanized
Fixing mode By screws
Adjustment Adjustable with a pitch of 25 mm
Number of horizontal rows 1
Maximum load 70 kg
Height Nominal: 300 mm,Useful: 207 mm
Width 40 mm
Depth 27 mm
Thickness 1.5 mm

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 5.500 cm
Package 1 Length 21.000 cm
Package 1 Weight 590.000 g
Unit Type of Package 2 P12
Number of Units in Package 2 200
Package 2 Height 45.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 150.000 kg

Logistical informations

Country of origin IN

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
