NSYTBP292412H

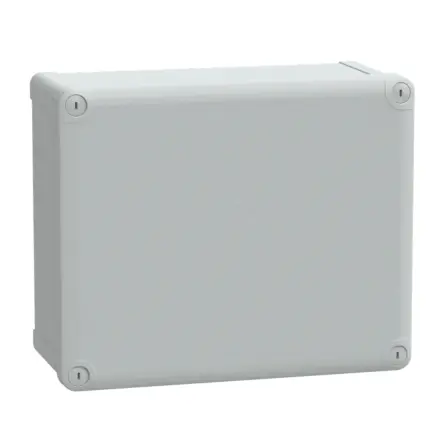

NSYTBP292412H Schneider Electric - PC box IP66 IK08 RAL7035 Int.H275W225D120 Ext.H291W241D128 opaque PC cover H60

NSYTBP292412H Schneider Electric - This TBP is a wall-mounted box made of polycarbonate,It is designed for multi-purpose applications and can be used indoor or outdoor,The box has a grey (RAL 7035) body and a high plain cover,The enclosure has a nominal height, width, and depth of 291 mm, 241 mm, and 128 mm, respectively,The internal dimensions of the box are 275 mm x 225 mm x 120 mm,The cover is closed by four captive flat screws located outside the sealed area of the box to maintain IP,The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions,It is also resistant to fire up to 960°C in accordance with IEC 62208 standard,The box offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and is impact resistant with an IK08 rating (IEC 62262),It can be stored in ambient air temperatures ranging from -15 to 60°C and used in ambient air temperature ranging from -25 to 80 °C without affecting its performance,The product is UL certified and has a net weight of 1,1 kg
