Schneider Electric

NSYTRR162PE

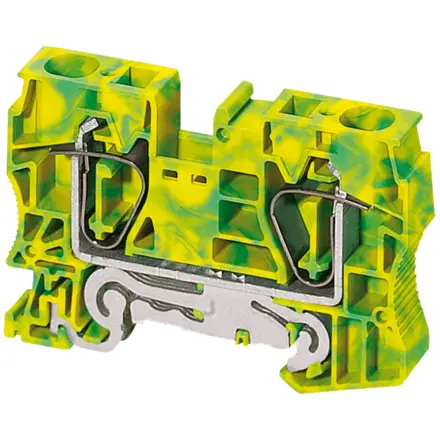

NSYTRR162PE Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYTRR162PE Schneider Electric

NSYTRR162PE Schneider Electric - SPRING TERMINAL, PROTECTIVE EARTH, 2 POINTS, 16MM², GREEN-YELLOW

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£5.08 Exc. VAT
£6.10 Inc. VAT

Main

Range Linergy
Product name Linergy TR
product or component type Terminal block
Device short name TRR
Terminal block type Protective earth
Terminal block level 1
mounting mode Clip-on
Nominal cross section 16 mm²
Length 80 mm
Colour Green-yellow
Quantity per set Set of 50

Complementary

Width 12.2 mm
Height 51 mm
Connections - terminals 1 x spring terminal: upstream,1 x spring terminal: downstream
number of connections 2
Connection position Top
Number of measurement input 2
Cable cross section 0.2…25 mm², solid,0.2…16 mm², flexible without cable end,1.5…16 mm², flexible with cable end
Wire stripping length 18 mm
Tool type Connection: flat screwdriver,Disconnection: flat screwdriver
Material Polyamide 6/6: insulating case
Dielectric loss 0.01 at 1 MHz conforming to IEC 60250,0.01 at 1 MHz conforming to VDE 0303-T4
Dielectric constant 3.7 at 1 MHz
Resistivity 10000 MΩ.m conforming to IEC 60093,10000 MΩ.m conforming to VDE 0303-T30
Surface resistance 1000 GΩ conforming to IEC 60093,1000 GΩ conforming to VDE 0303-T30
Creep resistance 500 CTI (> 400 kB) conforming to IEC 60093,500 CTI (> 400 kB) conforming to VDE 0303-T30
Flame retardance V0, thickness0.8 mm conforming to UL 94
net weight 51.2 g
Range compatibility Prisma G,Prisma P,Prisma PH,Prisma Pack,Spacial,Kaedra,Pragma,TeSys
Product compatibility Spacial enclosures

Environment

Product certifications IEC-Ex,GL,LR,cURus,ATEX,EAC,VDE,CSA,DNV
Dielectric strength 1000 V conforming to IEC 60243-1
Ambient air temperature for operation -40…130 °C conforming to IEC 60216-1,-40…130 °C conforming to VDE 0304-T21

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.2 cm
Package 1 Width 5.1 cm
Package 1 Length 8 cm
Package 1 Weight 48 g
Unit Type of Package 2 BB1
Number of Units in Package 2 25
Package 2 Height 6.2 cm
Package 2 Width 11.2 cm
Package 2 Length 31.3 cm
Package 2 Weight 1.259 kg
Unit Type of Package 3 S03
Number of Units in Package 3 200
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 10.563 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD

Environmental disclosure
