Description for NSYTRR24D Schneider Electric

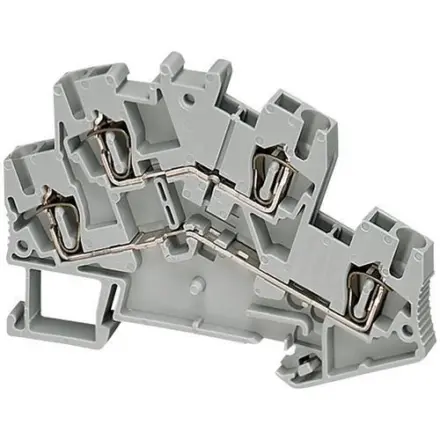

NSYTRR24D Schneider Electric - SPRING TERMINAL, DOUBLE LEVEL, 4 POINTS, 2,5MM², GREY

Extended Description for NSYTRR24D Schneider Electric

NSYTRR24D Schneider Electric - Linergy TR is terminal block for Linergy.,It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section.,The rated operational voltage is 600V conforming to CSA, 300V conforming to cURus and 500V conforming to EN/IEC 60947-7-1.,The rated current is 22A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus.,It has grey surface treatment.,Mounting by clip-on and top connection by double-level 1x1 screw terminals.,It could be connection and disconnection by screwdriver.,It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys.,Sold in lots of 50 units.,Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21.,Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC).,It is compliant with Green Premium (RoHS/REACH).

Free Delivery to UK Mainland on orders over £25

35 available
1 - 2 w.days
£3.01 Exc. VAT
£3.61 Inc. VAT

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1.39 Exc. VAT
£1.67 Inc. VAT

Main

Range Linergy
Product name Linergy TR
product or component type Terminal block
Device short name TRR
accessory / separate part category Connection accessory
Terminal block type Passthrough
Terminal block level 2
mounting mode Clip-on
Nominal cross section 2.5 mm²
Length 78 mm
Colour Grey
Quantity per set Set of 50

Complementary

Width 5.2 mm
Height 55 mm
Connections - terminals 1 x spring terminal: upstream,1 x spring terminal: downstream
number of connections 2
Connection position Top
Number of measurement input 4
Cable cross section 0.08…2.5 mm², flexible without cable end,0.08…4 mm², solid with cable end,0.2…2.5 mm², flexible with cable end,0.08…4 mm², solid without cable end
Wire stripping length 10 mm
Tool type Connection: flat screwdriver,Disconnection: flat screwdriver
[Ue] rated operational voltage 500 V conforming to EN/IEC 60947-7-1,300 V CSA,440 V,600 V UL
[In] rated current 20 A CSA,20 A UL,22 A conforming to EN/IEC 60947-7-1,19.5 A
Material Polyamide 6/6: insulating case,Copper alloy: connector and screw,Copper alloy: commoning link,Chromium-nickel steel: spring
Dielectric loss 0.01 at 1 MHz conforming to IEC 60250,0.01 at 1 MHz conforming to VDE 0303-T4
Dielectric constant 3.7 at 1 MHz
Resistivity 10000 MΩ.m conforming to IEC 60093,10000 MΩ.m conforming to VDE 0303-T30
Surface resistance 1000 GΩ conforming to IEC 60093,1000 GΩ conforming to VDE 0303-T30
Creep resistance 500 CTI (> 400 kB) conforming to IEC 60093,500 CTI (> 400 kB) conforming to VDE 0303-T30
Flame retardance V0, thickness0.8 mm conforming to UL 94
net weight 12.3 g
Range compatibility PrismaSeT G,PrismaSeT P,PrismaSet HD PH,PrismaSeT Pack 250,PanelSeT,Mureva,PrismaSeT XS,TeSys
Product compatibility Spacial enclosures

Environment

Product certifications UL,GL,VDE,DNV,CSA
Dielectric strength 1000 V conforming to IEC 60243-1
Ambient air temperature for operation -40…130 °C conforming to IEC 60216-1,-40…130 °C conforming to VDE 0304-T21

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 8.500 cm
Package 1 Length 27.000 cm
Package 1 Weight 12.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 50
Package 2 Height 6.000 cm
Package 2 Width 8.500 cm
Package 2 Length 27.000 cm
Package 2 Weight 612.000 g
Unit Type of Package 3 S03
Number of Units in Package 3 900
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 11.546 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

User guide

Catalogue

CAD

Environmental disclosure
