Schneider Electric

NSYTRR24PE

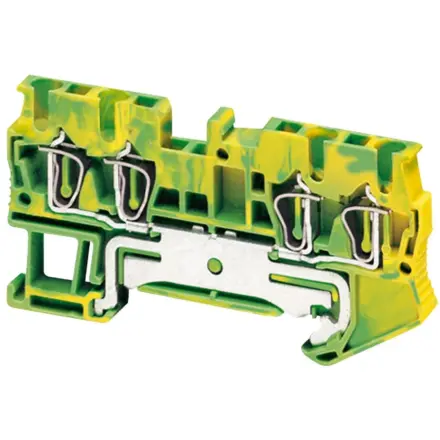

NSYTRR24PE Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYTRR24PE Schneider Electric

NSYTRR24PE Schneider Electric - SPRING TERMINAL, PROTECTIVE EARTH, 4 POINTS, 2,5MM², GREEN-YELLOW

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£0.67 Exc. VAT
£0.80 Inc. VAT

Main

Range Linergy
Product name Linergy TR
product or component type Terminal block
Device short name TRR
Terminal block type Protective earth
Terminal block level 1
mounting mode Clip-on
Nominal cross section 2.5 mm²
Length 72 mm
Colour Green-yellow
Quantity per set Set of 50

Complementary

Width 5.2 mm
Height 36.5 mm
Connections - terminals 2 x spring terminal: downstream,2 x spring terminal: upstream
number of connections 4
Connection position Top
Number of measurement input 2
Cable cross section 0.08…4 mm², solid,0.2…2.5 mm², flexible with cable end,0.08…2.5 mm², flexible without cable end
Wire stripping length 10 mm
Tool type Connection: flat screwdriver,Disconnection: flat screwdriver
Material Polyamide 6/6: insulating case
Dielectric loss 0.01 at 1 MHz conforming to IEC 60250,0.01 at 1 MHz conforming to VDE 0303-T4
Dielectric constant 3.7 at 1 MHz
Resistivity 10000 MΩ.m conforming to IEC 60093,10000 MΩ.m conforming to VDE 0303-T30
Surface resistance 1000 GΩ conforming to IEC 60093,1000 GΩ conforming to VDE 0303-T30
Creep resistance 500 CTI (> 400 kB) conforming to IEC 60093,500 CTI (> 400 kB) conforming to VDE 0303-T30
Flame retardance V0, thickness0.8 mm conforming to UL 94
net weight 12.8 g
Range compatibility PrismaSeT P G,PrismaSeT G P,PrismaSet HD PH,PrismaSeT Pack,PanelSeT,Mureva,PrismaSeT XS,TeSys
Product compatibility Spacial enclosures

Environment

Product certifications VDE,DNV,CSA,UL,GL
Dielectric strength 1000 V conforming to IEC 60243-1
Ambient air temperature for operation -40…130 °C conforming to IEC 60216-1,-40…130 °C conforming to VDE 0304-T21

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 9.000 cm
Package 1 Length 27.000 cm
Package 1 Weight 13.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 50
Package 2 Height 4.500 cm
Package 2 Width 9.000 cm
Package 2 Length 27.000 cm
Package 2 Weight 679.000 g
Unit Type of Package 3 S02
Number of Units in Package 3 400
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 5.828 kg

Logistical informations

Country of origin DE

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD

Environmental disclosure
