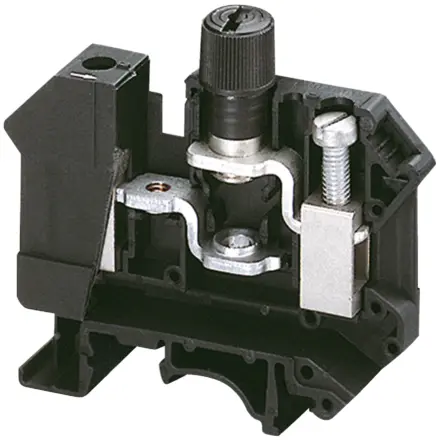

NSYTRV162SF Schneider Electric - SCREW TERMINAL, FUSED, SCREW CAP, FOR 5X20MM CARTRIDGE FUSE, 2PTS, 10

Extended Description for NSYTRV162SF Schneider Electric

NSYTRV162SF Schneider Electric - Linergy TR is terminal block for Linergy.,It belongs to linergy fixed carrier terminal block with 16 mm² nominal cross section.,The rated operational voltage is 300V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1.,The rated current is 10A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus.,It has black surface treatment.,Mounting by clip-on and sideways connection by single-level 1x1 screw terminals.,It could be connection and disconnection by screwdriver.,It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys.,Sold in lots of 50 units.,Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21.,Multi standards certified (CSA, cURus, DNV, LR, EAC).,It is compliant with Green Premium (RoHS/REACH).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£4.53 Exc. VAT
£5.43 Inc. VAT

Main

Range Linergy
Product name TR
product or component type Terminal block
Device short name TRV
Terminal block type Fixed carrier
device application Protection
Associated connection component Cylindrical fuse
Terminal block level 1
mounting mode Clip-on
Nominal cross section 16 mm²
Length 62 mm
Colour Black
Quantity per set Set of 50

Complementary

Fuse size 5 x 20 mm
Width 12 mm
Height 57.2 mm
Connections - terminals 1 x screw terminal: upstream,1 x screw terminal: downstream
number of connections 2
Connection position Sideways
Number of measurement input 0
Cable cross section 1.5…16 mm², flexible with cable end,0.08…2.5 mm², flexible without cable end,0.5…16 mm², solid without cable end
Tightening torque 1.5…1.8 N.m
Wire stripping length 11 mm
Tool type Connection: screwdriver,Disconnection: screwdriver
[Ue] rated operational voltage 500 V conforming to EN/IEC 60947-7-1,300 V cURus,300 V CSA
[In] rated current 10 A conforming to EN/IEC 60947-7-1,20 A cURus,20 A CSA
Material Polyamide 6/6: insulating case
Dielectric loss 0.01 at 1 MHz conforming to IEC 60250,0.01 at 1 MHz conforming to VDE 0303-T4
Dielectric constant 3.7 at 1 MHz
Resistivity 10000 Ω.cm conforming to IEC 60093,10000 Ω.cm conforming to VDE 0303-T30
Surface resistance 1000 MOhm conforming to IEC 60093,1000 MOhm conforming to VDE 0303-T30
Creep resistance 500 CTI (> 400 kB) conforming to IEC 60093,500 CTI (> 400 kB) conforming to VDE 0303-T30
Flame retardance V0, thickness0.8 mm conforming to UL 94
net weight 33.8 g
Range compatibility PrismaSeT G,PrismaSeT P,PrismaSet HD,PrismaSeT Pack 250,PanelSeT,Mureva,PrismaSeT XS,TeSys
Product compatibility Spacial enclosures

Environment

Product certifications DNV,UL,CSA,LR
Dielectric strength 1000 V conforming to IEC 60243-1
Ambient air temperature for operation -40…130 °C conforming to IEC 60216-1,-40…130 °C conforming to VDE 0304-T21

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.200 cm
Package 1 Width 5.700 cm
Package 1 Length 6.500 cm
Package 1 Weight 33.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 50
Package 2 Height 6.500 cm
Package 2 Width 13.500 cm
Package 2 Length 31.000 cm
Package 2 Weight 1.690 kg
Unit Type of Package 3 P06
Number of Units in Package 3 3400
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 128.920 kg

Contractual warranty

Warranty 18 months
