Schneider Electric

NSYTRV24SCD

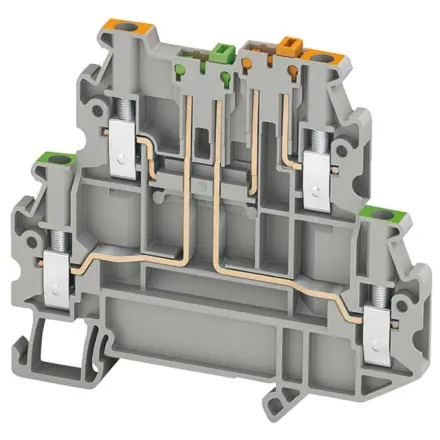

NSYTRV24SCD Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYTRV24SCD Schneider Electric

NSYTRV24SCD Schneider Electric - SPRING TERMINAL, KNIFE DISCONNECT, DOUBLE LEVEL, 4 POINTS TEST, 2,5MM

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£63.29 Exc. VAT
£75.95 Inc. VAT

Main

Range Linergy
Product name Linergy TR
product or component type Terminal block
Device short name TRV
Terminal block type Blade disconnect
Terminal block level 2
mounting mode Clip-on
Nominal cross section 2.5 mm²
Length 69.9 mm
Colour Grey
Quantity per set Set of 50

Complementary

Width 5.2 mm
Height 65 mm
Connections - terminals 2 x screw terminal: downstream,2 x screw terminal: upstream
number of connections 4
Connection position Sideways
Number of measurement input 2
Cable cross section 0.14…4 mm², flexible without cable end,0.14…4 mm², solid
Tightening torque 0.5…0.6 N.m
Wire stripping length 9 mm
Tool type Connection: screwdriver,Disconnection: screwdriver
[Ue] rated operational voltage 500 V conforming to EN/IEC 60947-7-1,300 V CSA,300 V cURus
[In] rated current 30 A conforming to EN/IEC 60947-7-1,30 A CSA,30 A cURus
Material Polyamide 6/6: insulating case
Dielectric loss 0.01 at 1 MHz conforming to IEC 60250,0.01 at 1 MHz conforming to VDE 0303-T4
Dielectric constant 3.7 at 1 MHz
Resistivity 10000 MΩ.m conforming to IEC 60093,10000 MΩ.m conforming to VDE 0303-T30
Surface resistance 1000 GΩ conforming to IEC 60093,1000 GΩ conforming to VDE 0303-T30
Creep resistance 500 CTI (> 400 kB) conforming to IEC 60093,500 CTI (> 400 kB) conforming to VDE 0303-T30
Flame retardance V0, thickness0.8 mm conforming to UL 94
net weight 2.7 g
Range compatibility Prisma G,Prisma P,Prisma PH,Prisma Pack,Spacial,Kaedra,Pragma
Product compatibility Spacial enclosures

Environment

Product certifications cURus,EAC
Dielectric strength 1000 V conforming to IEC 60243-1
Ambient air temperature for operation -40…130 °C conforming to IEC 60216-1,-40…130 °C conforming to VDE 0304-T21

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.3 cm
Package 1 Width 7.3 cm
Package 1 Length 32.2 cm
Package 1 Weight 18.0 g
Unit Type of Package 2 CAR
Number of Units in Package 2 50
Package 2 Height 9.3 cm
Package 2 Width 7.3 cm
Package 2 Length 32.2 cm
Package 2 Weight 900.0 g

Contractual warranty

Warranty 18 months
