Schneider Electric

NSYTRV26T

NSYTRV26T Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYTRV26T Schneider Electric

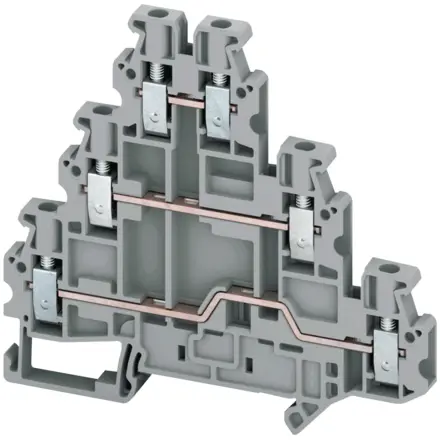

NSYTRV26T Schneider Electric - SCREW TERMINAL, 3 LEVELS, 6 POINTS, 2,5MM², GREY

Extended Description for NSYTRV26T Schneider Electric

NSYTRV26T Schneider Electric - SCREW TERMINAL, 3 LEVELS, 6 POINTS, 2,5MM², GREY

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£2.10 Exc. VAT
£2.52 Inc. VAT

Main

Range Linergy
Product name Linergy TR
product or component type Terminal block
Device short name TRV
accessory / separate part category Connection accessory
Terminal block type Passthrough
Terminal block level 3
mounting mode Clip-on
Nominal cross section 2.5 mm²
Length 90 mm
Colour Grey
Quantity per set Set of 50

Complementary

Width 5.2 mm
Height 77.5 mm
Connections - terminals 1 x screw terminal: upstream (M3),1 x screw terminal: downstream (M3)
number of connections 2
Connection position Sideways
Number of measurement input 3
Cable cross section 0.14…4 mm², solid cable with cable end,0.2…2.5 mm², flexible cable with cable end,0.14…4 mm², solid cable without cable end,0.14…4 mm², flexible cable without cable end
Tightening torque 0.5…0.6 N.m
Wire stripping length 9 mm
Tool type Connection: screwdriver,Disconnection: screwdriver
[Ue] rated operational voltage 500 V conforming to EN/IEC 60947-7-1
[In] rated current 20 A conforming to EN/IEC 60947-7-1
Material Polyamide 6/6: insulating case,Copper alloy: connector and screw,Copper alloy: commoning link,Chromium-nickel steel: spring
Dielectric loss 0.01 at 1 MHz conforming to IEC 60250,0.01 at 1 MHz conforming to VDE 0303-T4
Dielectric constant 3.7 at 1 MHz
Resistivity 10000 MΩ.m conforming to IEC 60093,10000 MΩ.m conforming to VDE 0303-T30
Surface resistance 1000 GΩ conforming to IEC 60093,1000 GΩ conforming to VDE 0303-T30
Creep resistance 500 CTI (> 400 kB) conforming to IEC 60093,500 CTI (> 400 kB) conforming to VDE 0303-T30
Flame retardance V0, thickness0.8 mm conforming to UL 94
net weight 25.1 g
Range compatibility PrismaSeT G,PrismaSeT P,PrismaSet HD,PrismaSeT Pack 250,PanelSeT,Mureva,PrismaSeT XS,TeSys
Product compatibility Spacial enclosures

Environment

Product certifications CSA,UL
Dielectric strength 1000 V conforming to IEC 60243-1
Ambient air temperature for operation -40…130 °C conforming to IEC 60216-1,-40…130 °C conforming to VDE 0304-T21

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.500 cm
Package 1 Width 11.000 cm
Package 1 Length 36.500 cm
Package 1 Weight 26.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 50
Package 2 Height 9.500 cm
Package 2 Width 11.000 cm
Package 2 Length 36.500 cm
Package 2 Weight 1.324 kg
Unit Type of Package 3 S03
Number of Units in Package 3 300
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 8.456 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Catalogue

CAD

Environmental disclosure
