Schneider Electric

NSYVD2M17U5

NSYVD2M17U5 Schneider Electric

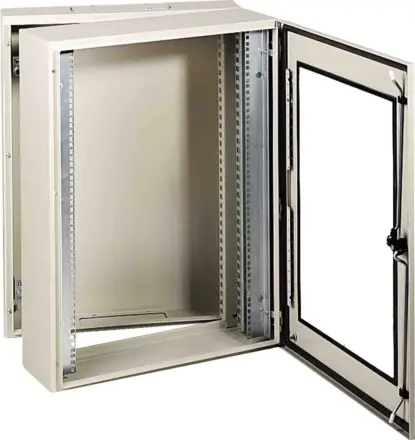

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for NSYVD2M17U5 Schneider Electric

NSYVD2M17U5 Schneider Electric - Wall rack VDM 17U 2 bodies D480

Extended Description for NSYVD2M17U5 Schneider Electric

NSYVD2M17U5 Schneider Electric - Spacial VDM Wall Rack (2 bodies).,Enclosure depth is 480 mm.,Compact enclosure. Fixed rack. Electronics and networks destination. Glazed door.,17 units (19 inch). 3 mm double-bar lock. Standard gland plate.,Steel enclosure, galvanised steel for rack.,Grey RAL 7035.,IEC 62208 standard.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£1,603.68 Exc. VAT
£1,924.42 Inc. VAT

Main

Range Spacial
Product name Spacial VDM
Application Electronic application
product or component type Compact enclosure
Body type 2-body
Rack type Fixed
Enclosure nominal height 800 mm
Enclosure nominal width 600 mm
Enclosure nominal depth 480 mm
Installation accessory type Wall-mounting
Product destination Electronics and networks
Device composition 1 rear part: inside the enclosure,2 cable gland plate: top and bottom of rear,1 19" fixed rack: 65 mm back from the front panel,1 body,1 door with lock

Complementary

Door type Glazed
Number of doors Front face: 1 door(s)
Door opening side Reversible (120 °)
Lock type 3 points lock, 3 mm double-bar
Type of gland plate Standard
Number of units 19" 17
Accessibility for operation Front body and front rear
Removable parts Door by hinges,Body by fixing element,Rack
Material Enclosure: steel,19" fixed rack: galvanised steel
Surface finish Enclosure: epoxy-polyester powder
Colour Enclosure: grey (RAL 7035)
Standards IEC 62208
net weight 41.8 kg
Width 600 mm
Height 800 mm
Depth 480 mm

Environment

IP degree of protection IP66 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 82.5 cm
Package 1 Width 61.0 cm
Package 1 Length 51.0 cm
Package 1 Weight 41.8 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD
