PCSP047D6N2

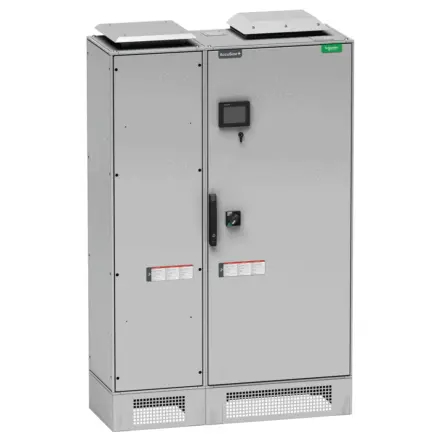

PCSP047D6N2 Schneider Electric - AccuSine PCS+ active filter plus - 47A - 480/600V - 50/60Hz - UL - T2 - cabinet

PCSP047D6N2 Schneider Electric - This hardware is an active power correction solution, which helps stabilize power grids through harmonic attenuation, power factor correction and load balancing. It is specially designed for harsh electrical conditions, for heavy industrial applications, including critical environments.,This UL Type 2 version can be connected on low voltage rated networks s between 480 and 600V.,It is specified for a standard root mean square output current rating of 47 amps.,The housing is placed on the ground and allows cable entry via up or down. It is light gray (RAL 7035).,This active power filter achieves superior performance to THDi standards less than or equal to 3%, and is CE, UL, IBC 2015 AC156, EAC, RCM certified .,It is designed according to standards IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4 Class A, IEC 61439-1 and IEEE 519-2014.,It allows up to 10 units s of different ratings that can be put in parallel, to obtain a maximum compensation of 3,000A per set of CTs.
