Description for RMCL55BD Schneider Electric

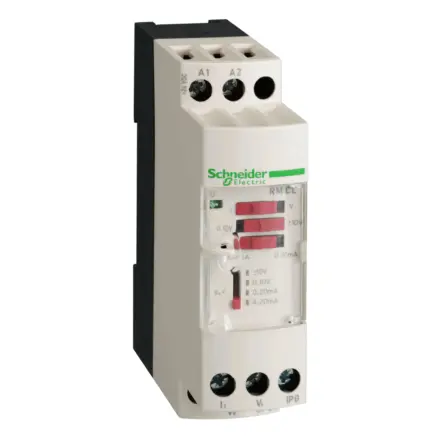

RMCL55BD Schneider Electric - Isoled Analog Converter - 0..20 mA - for Harmony Analog

Extended Description for RMCL55BD Schneider Electric

RMCL55BD Schneider Electric - This voltage/current converter is part of the range of Harmony Analog.,It allows conversion of the most common signals.,Its supply voltage is 24V DC, isolated.,It features four inputs with voltage/current range of 0V to 10V, +/- 10V, 0mA to 20mA, and 4mA to 20mA. It has four outputs with a switchable voltage/current range of 0V to 10V, +/- 10V, 0mA to 20mA, and 4mA to 20mA.,It also allows the connection distance between a sensor and the measurement acquisition device to be increased.,It weighs 0.120Kg.,Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use.,Quick and intuitive setting, easy to use with fixed input and output values according to the market needs. The settings are secure with sealable protective cover.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£88.63 Exc. VAT
£106.36 Inc. VAT

Main

range of product Harmony Analog
product or component type Voltage/current converter
Analogue input type Current 0...20 mA,Current 4...20 mA,Voltage +/- 10 V DC,Voltage 0...10 V DC
Analogue output type Current 0...20 mA <= 500 Ohm switchable,Current 4...20 mA <= 500 Ohm switchable,Voltage +/- 10 V >= 100 kOhm switchable,Voltage 0...10 V >= 100 kOhm switchable

Complementary

Protection type Reverse polarity protection on output,Short-circuit protection on output,Overvoltage protection on output (+/- 30 V)
abnormal analogue output voltage 11...15 V, output selected - 10...10 V no input or input wire broken voltage,11...15 V, output selected 0...10 V no input or input wire broken voltage,-15...0 V, output selected 0...20 mA no input or input wire broken current,-15...0 V, output selected 4...20 mA no input or input wire broken current
abnormal analogue output current 22…30 mA, output selected 0...20 mA no input or input wire broken voltage,22…30 mA, output selected 4...20 mA no input or input wire broken voltage,-30…0 mA, output selected 0...20 mA no input or input wire broken current,4…30 mA, output selected 4...20 mA no input or input wire broken current
[Us] rated supply voltage 24 V DC +/- 20 %, isolated
Current consumption <= 70 mA for voltage output,<= 90 mA for current output
Local signalling LED (green) for power ON
Measurement error +/- 5 % of full scale at 20 °C (temporary performance degradation when subject to electromagnetic interference)
Repeat accuracy +/- 0.2 % full scale at 20 °C,+/- 0.6 % full scale at 60 °C
Temperature coefficient 200 ppm/°C
clamping connection capacity 2 x 1.5 mm²,1 x 2.5 mm²
Tightening torque 0.6…1.1 N.m
marking CE
Surge withstand 0.5 kV during 1.2/50 µs conforming to IEC 61000-4-5
[Ui] rated insulation voltage 2 kV
Fixing mode By screws (mounting plate),Clip-on (35 mm symmetrical DIN rail)
Safety reliability data B10d = 20000,MTTFd = 21.6 years
net weight 0.12 kg

Environment

Standards IEC 60947-1,IEC 60584-1
Product certifications UL,GL,CSA
IP degree of protection IP20 (terminal block),IP50 (housing)
Fire resistance 850 °C conforming to IEC 60695-2-1,850 °C conforming to UL
Shock resistance 50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance 5 gn (f= 10…100 Hz) conforming to IEC 60068-2-6
Resistance to electrostatic discharge 6 kV (in contact) conforming to IEC 61000-4-2 level 3,8 kV (in air) conforming to IEC 61000-4-2 level 3
Resistance to fast transients 1 kV (on input-output) conforming to IEC 61000-4-4,2 kV (on power supply) conforming to IEC 61000-4-4
Disturbance radiated/conducted CISPR 22 group 1 - class B,CISPR 11
Ambient air temperature for storage -40…85 °C
Ambient air temperature for operation 0…50 °C mounting side by side,0…60 °C 2 cm spacing
Pollution degree 2 conforming to IEC 60664-1

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.7 cm
Package 1 Width 8.2 cm
Package 1 Length 8.5 cm
Package 1 Weight 119.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 47
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 6.14 kg

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
