Schneider Electric

SC3404E5045

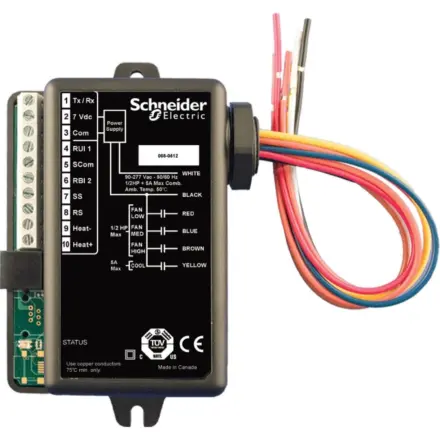

SC3404E5045 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for SC3404E5045 Schneider Electric

SC3404E5045 Schneider Electric - Relay Pack for Line-voltage FCU, 90 to 277 VAC 50/60 Hz, 1H/1C Mod Reheat, SER models, 4 Ins, On-Off, 1 H/C out, 3 fan outs

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£358.83 Exc. VAT
£430.59 Inc. VAT

Main

Network frequency 60 Hz,50 Hz
device application Low voltage fan coil,Line voltage fan coil
net weight 0.34 kg
Directives 2006/95/EC - low voltage directive,1999/5/EC - R&TTE directive,2004/108/EC - electromagnetic compatibility
Width 80.01 mm
product or component type Relay pack
Device short name SC3000
Height 121.9 mm
Ambient air temperature for storage -22…122 °F
Depth 33.02 mm
Ambient air temperature for operation 32…122 °F
Number of outputs 3 fan relay,1 valve relay,1 solid state
Standards IEC 61326-1:2005,FCC part 15 Subpart B,ICES-003,UL 873,EN 60730-2-9,UL 61010-1:ed. 3,IEC 61010-1:ed. 3,CSC 61010-1:ed. 3,CSA C22.2 No 24
Range EcoStruxure Building Expert

Complementary

Pulse width modulation output 1 PWM/PLS
Product specific application 3-stage speed,Control of PWM reheat valve,Control of heat/cool valve,Control of fan coil
Maximum output current For fan relay: 13 A at <= 277 V AC and 0.5 hp, brown/blue/red wire,For cool valve: 5 A at <= 277 V AC, yellow wire,For heat valve: 10 A at <= 277 V AC, orange wire
[Uc] control circuit voltage 7 V DC at 10 mA,6 V DC at 20 mA
Range compatibility EcoStruxure Building Expert communication card,EcoStruxure Building Expert SE7000 Series SER7300 room controller,EcoStruxure Building Expert SE8000 Series SER8300 room controller
Load type Motor - 90...277 V AC at 50/60 Hz,Valve - 90...277 V AC at 50/60 Hz,Fan output - 90...277 V AC at 50/60 Hz
Connections - terminals Screw terminal AWG 22...AWG 14
Sensor type Single point calibrated bulk polymer RH sensor
Measurement accuracy Humidity: 10 %, 10...20 % (non-condensing RH),Humidity: 5 %, 20...80 % (non-condensing RH),Humidity: 10 %, 80...90 % (non-condensing RH),Temperature: +/- 0.9 °F, (at 70 °F typically calibrated)

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet
