Schneider Electric

SLABTCX

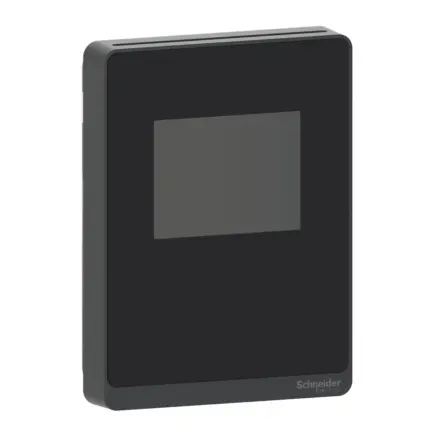

SLABTCX Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for SLABTCX Schneider Electric

SLABTCX Schneider Electric - SpaceLogic SLA Series Air Quality Sensor, CO2, Temperature, Room, Color Touchscreen, Analog Outputs, Optimum Black Housing

Extended Description for SLABTCX Schneider Electric

SLABTCX Schneider Electric - The SpaceLogic SLA Series of wall air quality sensors for rooms is a flexible multisensor platform for use with BAS controllers.,It is designed to accept 4 to 20 mA, 0 to 5 V DC or 0 to 10 V DC outputs.,The wall mounted sensor housing is optimum black.,The user interface is assured by a color touchscreen with control and setpoint menu.,This air quality sensor include a temperature and CO² elements.,The dimensions of the device are 115 mm in height, 85 mm in width and 23.7 mm in depth.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£251.15 Exc. VAT
£301.38 Inc. VAT

Main

Range SpaceLogic
product or component type Sensor
Product name SpaceLogic Room Unit
Type of measurement Carbon dioxide (CO2),Temperature
device application HVAC,Temperature control,Fan speed controller
Product certifications CE conforming to EN 61000-6-2,CE conforming to EN 61000-6-3,CE conforming to EN 61326-1,RCM,EAC,ICES-003,CULus
Display resolution 240 x 300 pixels
Display size 2.4 inch
Display type Colour touchscreen
Information displayed Temperature,Temperature set point,Menu-driven user interface,CO2
Location Living space
mounting support Wall-mount
Depth 23.7 mm
Height 85 mm
Width 115 mm
Network frequency 50 Hz,60 Hz
Ambient air temperature for operation 0…50 °C
Standards UL 916,FCC part 15 class B
Colour Black
Sensor type Transmitter,NDIR (non-dispersive infrared)
[Us] rated supply voltage 24 V AC,20...30 V DC
Device presentation Complete product
Surface finish Glossy

Complementary

Communication network type Wired
Control type tactile
Material ABS (acrylonitrile butadiene-styrene)
Function available With temperature sensor,With CO2 sensor
Repeat accuracy +/- 20 ppm
Connections - terminals Screw terminal - 2 cable(s) (AWG 24...AWG 18)
Number of outputs 1 fan,1 configurable
Output type Analog
Output voltage 0...10 V for fan speed,0...5 V for configurable analog output,0...10 V for configurable analog output
Range compatibility EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers

Environment

Temperature setting range 10…35 °C,0…50 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 14 cm
Package 1 Width 9.4 cm
Package 1 Length 4.8 cm
Package 1 Weight 220 g

Contractual warranty

Warranty 18 months
