Schneider Electric

SRT8KXLI

SRT8KXLI Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for SRT8KXLI Schneider Electric

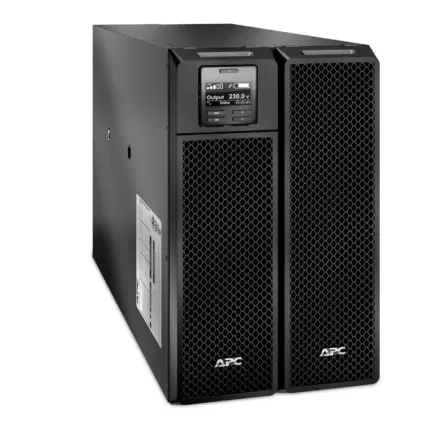

SRT8KXLI Schneider Electric - APC Smart-UPS On-Line, 8kVA/8kW, Tower, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

Extended Description for SRT8KXLI Schneider Electric

SRT8KXLI Schneider Electric - This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity.,This 8kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.,It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13, 4x IEC 320 C19 outlets, and 3x IEC jumper cables.,The UPS has an embedded Network Management Card for UPS network-based monitoring and management.,The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters.,It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card.,The UPS can connect to EcoStruxure IT or third-party centralized management platforms.,The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.,The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£9,403.80 Exc. VAT
£11,284.56 Inc. VAT

Overview

Presentation High density, double-conversion on-line power protection with scalable runtime.
Lead time Usually in Stock

Main

Main Input Voltage 230 V,400 V 3 phases
product or component type Uninterruptible power supply (UPS)
Other Input Voltage 220 V,240 V,380 V,415 V
Main Output Voltage 230 V
Other Output Voltage 220 V,240 V
Rated power in W 8000 W
Rated power in VA 8000 VA
output connection type 6 IEC 60320 C13 ,3 IEC Jumpers ,4 IEC 60320 C19
Output connector type Hard wire 3-wire (H N + E) 1
Provided equipment CD with software,Documentation CD,Installation guide,Temperature probe,USB cable,Warranty card,Web/SNMP management card
range of product Smart-UPS On-Line

Batteries & Runtime

Run Time View Runtime Graph
Efficiency View Efficiency Graph
Battery type Lead-acid battery
Battery voltage +/- 192 V (split battery referenced to neutral)
Extended runtime 1
Number of battery filled slots 0
Battery recharge time 1.5 h
Number of battery replacement quantity 2
Battery life 3…5 year(s)
Replacement battery APCRBC140
Battery charger power 876 W rated

General

Number of power module filled slots 0
Number of power module free slots 0
product web sub-family High density
Redundant No
UPS type Double conversion online

Physical

Colour Black
Height 43.2 cm
Width 26.3 cm
Depth 71.5 cm
net weight 111.82 kg
Mounting location Front
Mounting preference No preference
mounting mode Rack-mounted with kit
Two post mountable 0
USB compatible Yes

Input

Input voltage limits 100...275 V adjustable (half load),173...476 V adjustable (half load)
Number of input connectors 1 hard wire 3-wire (1P + N + E),1 hard wire 5-wire (3P + N + E)
Network frequency 40...70 Hz auto-sensing

Output

Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1
Harmonic distortion Less than 2 %
Maximum configurable power in VA 8000 VA
Maximum configurable power in W 8000 W
Wave type Sine wave
Output frequency 50/60 Hz +/- 3 Hz sync to mains

Conformance

Product certifications CE,EAC,IRAM,RCM,VDE
marking CE Mark
Standards EN/IEC 62040-1:2019/A11:2021,EN/IEC 62040-2:2006/AC:2006,EN/IEC 62040-2:2018

Environmental

Acoustic level 55 dBA
Heat dissipation 1497 Btu/h
Operating altitude 0...10000 ft
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0.0000000000…15240.0000000000 m
IP degree of protection IP20
Relative humidity 0…95 % non-condensing
Storage Relative Humidity 0…95 % non-condensing

Communications & Management

Emergency power off Yes
Free slots 1
Preinstalled device Network management card 3 with environmental monitoring
Alarm Audible and visible alarms : prioritized by severity

Surge Protection and Filtering

Surge energy rate 480 J

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 46.1 cm
Package 1 Width 60 cm
Package 1 Length 100 cm
Package 1 Weight 126.82 kg

Contractual warranty

Warranty 3 years repair or replace (excluding battery) and 2 years for battery

Documentation

Product Datasheet

User guide

Catalogue

Environmental disclosure
