Schneider Electric

SRTG15KXLI

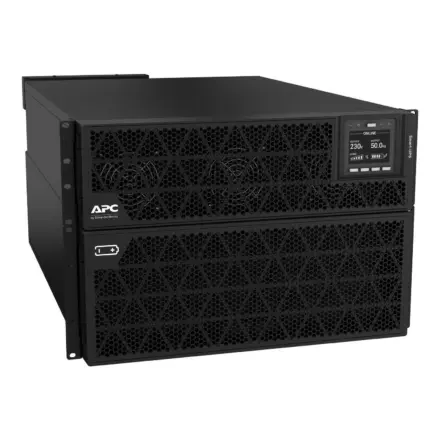

SRTG15KXLI Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for SRTG15KXLI Schneider Electric

SRTG15KXLI Schneider Electric - APC Smart-UPS On-Line, 15kVA/15kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit

Extended Description for SRTG15KXLI Schneider Electric

SRTG15KXLI Schneider Electric - This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity.,This 15kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions.,It comes with hard wire 3-wire(1P+N+E) and 5-wire(3P+N+E) inputs, 3-wire(1P+N+E) and 5-wire(3P+N+E) outlets.,The UPS has an embedded Network Management Card for UPS network-based monitoring and management.,The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters.,The UPS can connect to EcoStruxure IT or third-party centralized management platforms.,The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.,The UPS is compatible with SRTGRK1 rail kit sold separately.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£14,681.35 Exc. VAT
£17,617.62 Inc. VAT

Overview

Lead time Usually in Stock

Main

Main Input Voltage 400 V 3 phases,230 V 1 phase
product or component type Uninterruptible power supply (UPS)
Other Input Voltage 380...415 V,220...240 V
Main Output Voltage 400 V 3 phases ,230 V 1 phase
Other Output Voltage 230 V
Rated power in W 15000 W
Rated power in VA 15000 VA
Output connector type Hard wire 5-wire (3P + N + E) 1 ,Hard wire 3-wire (1P + N + E) 1 ,IDC connector 3-wire (1P + N + E) 1
Number of rack unit 7U
Provided equipment 1 x USB cable,1 x RJ45 cable,2 x rack mounting brackets,2 x stabilization/wall mounting feet,2 x installation manual,1 x C13-C14 power cord,1 x external battery pack,1 x battery cable
range of product Smart-UPS On-Line

Batteries & Runtime

Run Time View Runtime Graph
Efficiency View Efficiency Graph
Battery type Lead-acid battery
Battery voltage +/- 192 V
Extended runtime 1
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 4 h
Number of battery replacement quantity 2
Battery life 3…5 year(s)
Replacement battery APCRBC172
Battery charger power 2160 W rated

General

Number of power module filled slots 0
Number of power module free slots 0
Redundant No
UPS type Double conversion online

Physical

Colour Black (RAL 9005)
Height 30.6 cm
Width 44.0 cm
Depth 83.5 cm
net weight 142.5 kg
Mounting location Front
Mounting preference Lower
mounting mode Rack-mounted
Two post mountable 0
USB compatible Yes
Mounting position Horizontal

Input

Maximum input current 66 A
Input harmonic distortion Less than 5 % for full load
Load power factor From 0.9 leading to 1 lagging
Switching current capacity 100 A
Input voltage limits 160...285 V full load,100...285 V half load
Number of input connectors 1 hard wire 5 wire (3P + N + E),1 hard wire 3-wire (1P + N + E)
Network frequency 40...70 Hz auto-sensing

Output

Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1
Harmonic distortion Less than 2 %
Maximum configurable power in VA 15000 VA
Maximum configurable power in W 15000 W
Output overload operation 60 seconds at 125% and 30 seconds at 150%
Wave type Sine wave
Efficiency 94.5 %
Output frequency 50/60 Hz +/- 4 Hz sync to mains
Additional information Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage,Configurable for 220 : 230 or 240 nominal output voltage

Conformance

Product certifications CE,UKCA,TISI
Standards EN/IEC 62040-1:2019/A11:2021,EN/IEC 62040-2:2006/AC:2006,EN/IEC 62040-2:2018

Environmental

Acoustic level 58 dBA
Heat dissipation 2866 Btu/h
Operating altitude 0...3000 m
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0…15000 m
IP degree of protection IP20
Relative humidity 0…95 % non-condensing
Storage Relative Humidity 0…95 % non-condensing

Communications & Management

Emergency power off Yes
Free slots 0
Preinstalled device Network management card 3 with environmental monitoring
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rate 600 J
Noise suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 53.5 cm
Package 1 Width 79.0 cm
Package 1 Length 59.0 cm
Package 1 Weight 157.2 kg

Contractual warranty

Warranty 3 years repair or replace (excluding battery) and 2 years for battery

Documentation

Product Datasheet

User guide

Brochure

Environmental disclosure
