Schneider Electric

SRTL8KRM4UI

SRTL8KRM4UI Schneider Electric

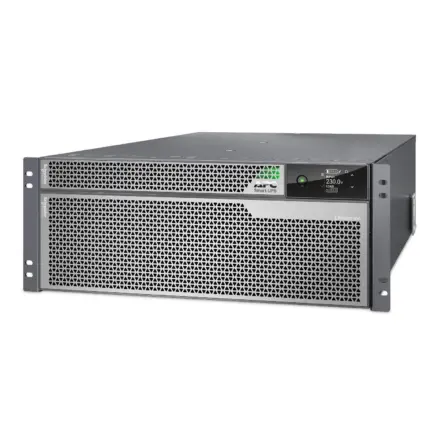

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for SRTL8KRM4UI Schneider Electric

SRTL8KRM4UI Schneider Electric - APC Smart-UPS Ultra On-Line, 8000VA, Lithium-ion, Rack/Tower 4U, 230V, 6 C13 + 4 C19 + 2 C19 IEC outlets, Network Card, Extended runtime, W/rail kit

Extended Description for SRTL8KRM4UI Schneider Electric

SRTL8KRM4UI Schneider Electric - With Smart-UPS⢠Ultra you can put up to 8000W of power protection in places never before possible.,Make installation effortless with a 8kW UPS that is 30% smaller and lighter than any comparable UPS.,The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous.,Lithium-ion batteries provide reduced maintenance cost with 3x the battery life.,EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£16,377.18 Exc. VAT
£19,652.62 Inc. VAT

Overview

Lead time Usually in Stock

Main

Main Input Voltage 220...240 V AC
product or component type Uninterruptible power supply (UPS)
Other Input Voltage 220...240 V
Main Output Voltage 220/230/240 V AC 1 phase
Other Output Voltage 220/230/240 V
Rated power in W 8000 W
Rated power in VA 8000 VA
Input Connection Type Hard Wire 3-wire 46 A
output connection type 6 IEC 60320 C13 ,6 IEC 60320 C19
Output connector type Hard wire 3-wire (1P + N + E) 1
Number of rack unit 4U
Number of cables 1
Battery type Li-Ion (Lithium-Ion)
Provided equipment Temperature probe,USB cable,Rack mounting hardware,Strain relief,Stabilization feet
range of product Smart-UPS Ultra

Batteries & Runtime

Run Time View Runtime Graph
Efficiency View Efficiency Graph
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 1.5 h
Number of battery replacement quantity 2
Battery voltage 180 V
Battery charger power 1200 W rated
Battery life 5…10 year(s)
Extended runtime 1

General

product web sub-family High density
Number of power module free slots 0
Redundant No

Physical

Colour Silver grey
Height 175 mm
Width 432 mm
Depth 832 mm
net weight 55 kg
Mounting location Front
Mounting preference Lower
mounting mode Rack-mounted with kit,Tower-mounted with kit
USB compatible Yes
Mounting position Horizontal,Vertical

Input

Network frequency 40...70 Hz auto-sensing
Number of input connectors 1 hard wire 3-wire (1P + N + E)

Output

Maximum configurable power in W 8000 W
Harmonic distortion Less than 5 %
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Crest factor 3 : 1
UPS type Double conversion online
Wave type Sine wave
Bypass type Internal bypass (automatic and manual)
Full load runtime 00:07:00 8000 W
Half load runtime 00:15:00 4000 W
Maximum configurable power in VA 8000 VA

Conformance

Product certifications VDE
marking CE Mark,UKCA
Standards EN/IEC 62040-1,IEC 62040-2,EN/IEC 62040-2

Environmental

Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.0000000000…15240.0000000000 m
Acoustic level 55 dB
Heat dissipation 1900 Btu/h
IP degree of protection IP20

Communications & Management

Free slots 1
Preinstalled device Network management card with environmental monitoring
Control panel Multifunction LCD status and control console
Alarm Audible and visible alarms : prioritized by severity
Emergency power off Yes

Surge Protection and Filtering

Surge energy rate 1410 J

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 63 cm
Package 1 Width 65 cm
Package 1 Length 100 cm
Package 1 Weight 88.5 kg
SCC14 1073130457849

Logistical informations

Country of origin PH

Contractual warranty

Warranty 5 years repair or replace

Documentation

Product Datasheet

User guide

Brochure

Environmental disclosure
