Schneider Electric

STBPDT2100K

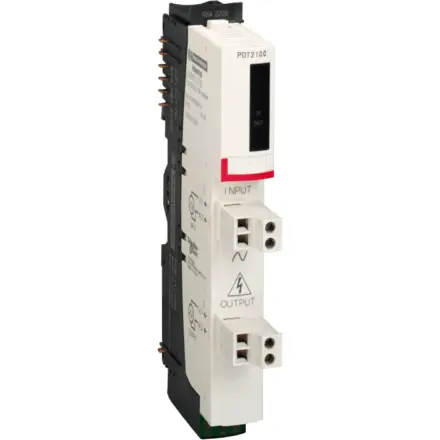

STBPDT2100K Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for STBPDT2100K Schneider Electric

STBPDT2100K Schneider Electric - standard power distribution kit STB - 115..230 V AC

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£80.78 Exc. VAT
£96.94 Inc. VAT

Main

range of product Modicon STB distributed I/O solution
product or component type Standard power distribution kit

Complementary

Kit composition STBPDT2100 module,STBXBA2200 base,STBXTS2130, spring type connectors,STBXTS1130, screw type connectors
[Us] rated supply voltage 115...230 V
Supply circuit type AC
Supply frequency 50...60 Hz
Power supply output current 0…10 A at 30 °C (output circuit),0…2.5 A at 60 °C (input circuit),0…5 A at 30 °C (input circuit),0…5 A at 60 °C (output circuit)
Voltage range 85...265 V AC sensor/actuator bus
Hot swapping fallback Hot swapping illegal
Protection type Built-in overcurrent protection, 10 A time-lag fuse for output circuit,Built-in overcurrent protection, 5 A time-lag fuse for input circuit
Permissible current 30 A for 2 minutes grounding terminal
Voltage detection threshold < 50 V +/-5 AC IN/OUT LED non lit,> 70 V +/-5 AC IN/OUT LED lit
Product compatibility Mounting base STBXBA2200
marking CE
Overvoltage category II
Status LED 1 LED (green) actuator bus power supply (OUT),1 LED (green) sensor bus power supply (IN)
Depth 65.1 mm
Height 18.4 mm
Width 125 mm
net weight 0.129 kg

Environment

Product certifications CSA,FM Class 1 Division 2,UL
Pollution degree 2 conforming to IEC 60664-1
Operating altitude <= 2000 m
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Ambient air temperature for operation 0…60 °C (without)
Ambient air temperature for storage -40…85 °C
Relative humidity 95 % at 60 °C without condensation
Vibration resistance +/-0.35 mm at 10…58 Hz,3 gn at 58…150 Hz on 35 x 7.5 mm symmetrical DIN rail,5 gn at 58…150 Hz on 35 x 15 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.7 cm
Package 1 Width 8.6 cm
Package 1 Length 14.0 cm
Package 1 Weight 146.0 g
Unit Type of Package 2 S02
Number of Units in Package 2 24
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.93 kg
Unit Type of Package 3 PAL
Number of Units in Package 3 384
Package 3 Height 60.0 cm
Package 3 Width 80.0 cm
Package 3 Length 384.0 cm
Package 3 Weight 56.064 kg

Contractual warranty

Warranty 18 months
