Schneider Electric

SURT20KRMXLI

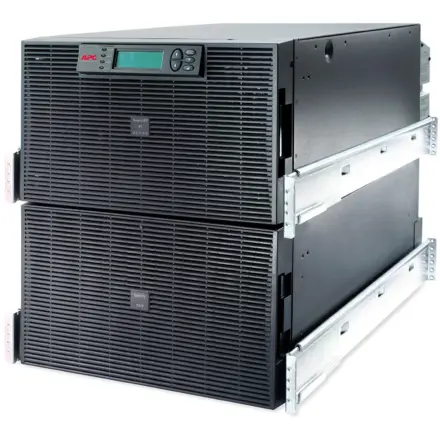

SURT20KRMXLI Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for SURT20KRMXLI Schneider Electric

SURT20KRMXLI Schneider Electric - APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets

Extended Description for SURT20KRMXLI Schneider Electric

SURT20KRMXLI Schneider Electric - High density, double-conversion on-line power protection with scalable runtime.

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£19,696.68 Exc. VAT
£23,636.02 Inc. VAT

Overview

Presentation High density, double-conversion on-line power protection with scalable runtime.
Lead time Usually in Stock

Main

Main Input Voltage 230 V,400 V 3 phases
product or component type Uninterruptible power supply (UPS)
Other Input Voltage 220 V,240 V
Main Output Voltage 230 V
Other Output Voltage 220 V,240 V
Rated power in W 16000 W
Rated power in VA 20000 VA
output connection type 2 IEC Jumpers ,8 IEC 60320 C19
Output connector type Hard wire 3-wire (H N + E) 1 ,Hard wire 5-wire (3P + N + E) 1
Number of rack unit 12U
Provided equipment CD with software,Rack mounting support rails,Smart UPS signalling RS-232 cable,User manual,Web/SNMP management card
range of product Smart-UPS On-Line

Batteries & Runtime

Run Time View Runtime Graph
Efficiency View Efficiency Graph
Battery type Lead-acid battery
Battery voltage +/- 192 V (split battery referenced to neutral)
Extended runtime 1
Number of battery filled slots 4
Number of battery free slots 0
Battery recharge time 2.5 h
Number of battery replacement quantity 4
Battery life 3…5 year(s)
Replacement battery APCRBC140
Discharge battery voltage +/- 154 V
Battery charger power 1530 W rated

General

Number of power module filled slots 0
Number of power module free slots 0
Redundant No
UPS type Double conversion online

Physical

Colour Black
Height 53.3 cm
Width 43.2 cm
Depth 77.3 cm
net weight 247.73 kg
Mounting location Front
Mounting preference Lower
mounting mode Rack-mounted
Two post mountable 0
USB compatible No

Input

Maximum input current 115 A
Input harmonic distortion Less than 5 % for full load
Input Power Factor at Full Load 0.98
Switching current capacity 125 A
Input voltage limits 160...280 V
Input current 115 A (1 phase),38.3 A per phase (3 phases)
Number of input connectors 1 hard wire 3-wire (1P + N + E),1 hard wire 5-wire (3P + N + E)
Network frequency 40...70 Hz auto-sensing

Output

Bypass type Built-in static bypass,Internal bypass (automatic and manual),Optional external bypass
Crest factor 3 : 1
Harmonic distortion Less than 5 %
Maximum configurable power in VA 20000 VA
Maximum configurable power in W 16000 W
Output overload operation 60 seconds at 125% and 30 seconds at 150%
Wave type Sine wave
Efficiency 93 % (in battery operation)
Output frequency 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
Additional information Configurable for 400 or 415 V 3 Phase nominal output voltage

Conformance

Product certifications BSMI,VDE
Standards EN/IEC 62040-1:2019/A11:2021,EN/IEC 62040-2:2006/AC:2006,EN/IEC 62040-2:2018

Environmental

Acoustic level 59 dBA
Heat dissipation 3770 Btu/h
Operating altitude 0...10000 ft
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0.0000000000…15240.0000000000 m
IP degree of protection IP20
Relative humidity 0…95 % non-condensing
Storage Relative Humidity 0…95 % non-condensing

Communications & Management

Emergency power off Yes
Free slots 0
Preinstalled device Network management card 2 with environmental monitoring

Surge Protection and Filtering

Noise suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 99 cm
Package 1 Width 61 cm
Package 1 Length 100.3 cm
Package 1 Weight 314.09 kg
Unit Type of Package 2 PAL
Number of Units in Package 2 2
Package 2 Height 111 cm
Package 2 Width 100 cm
Package 2 Length 120 cm
Package 2 Weight 626.864 kg

Contractual warranty

Warranty 2 years repair or replace

Documentation

Product Datasheet

User guide

Catalogue

Environmental disclosure
