Schneider Electric

SXWDOC8XX10001

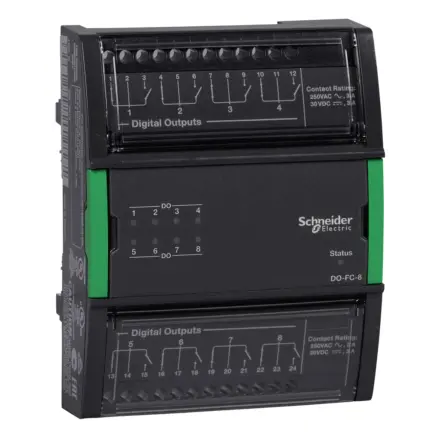

SXWDOC8XX10001 Schneider Electric

The product image shown is for illustration purposes only and may not be an exact representation of the product. Please refer to the item description for accurate information

Please note: Some products are subject to manufacturer minimum pack quantities. We will confirm this at time of order.

Description for SXWDOC8XX10001 Schneider Electric

SXWDOC8XX10001 Schneider Electric - SmartX Controller, I/O Module, 8 Form C Relay Digital Outputs

Extended Description for SXWDOC8XX10001 Schneider Electric

SXWDOC8XX10001 Schneider Electric - The SpaceLogic DO-FC-8 is a digital output 8 channel I/O expansion module for the SpaceLogic AS-P Server.,The digital outputs support digital Form C point types designed for direct load applications.,The DO-FC-8 I/O expansion module features 8 Form C digital outputs.,Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth.,This I/O module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110001).

Free Delivery to UK Mainland on orders over £25

Direct from Manufacturer

Available on back order
4 - 6 W.Weeks
£478.51 Exc. VAT
£574.21 Inc. VAT

Main

Flame retardance UL94V0-5VB
Width 30 mm
Product certifications ICES-003,FCC part 15 class B,CE,RCM
maximum power consumption in VA 2.2 W
net weight 209 g
product or component type I/O module
Device short name DO-FC-8
Height 114 mm
Ambient air temperature for storage -20…70 °C
Depth 64 mm
Ambient air temperature for operation 0…50 °C
IP degree of protection IP20
Relative humidity 0…95 % non-condensing
Product name I/O Modules
Product brand Schneider Electric
Range EcoStruxure Building Operation

Complementary

Discrete output number 8
mounting support Wall,DIN rail
Electrical connection Plug-in sub-base
Control type Without
Discrete input voltage 24 V
Discrete output type Relay
Local signalling LED (green) for relay energised
Range compatibility EcoStruxure Building Operation TB-IO-W1 terminal base
Standards UL 864,UL 916,FCC CFR 47 part 15
Material ABS + PC

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.8 cm
Package 1 Width 9.2 cm
Package 1 Length 5.8 cm
Package 1 Weight 220 g

Contractual warranty

Warranty 18 months

Documentation

Product Datasheet

Instruction sheet

Catalogue

CAD

Environmental disclosure
